To create the example:
1.
Click the Add icon (+). The Add New Chart Item window opens.
2.
Click Custom Parameter to enter a nonstandard parameter for charting.
3.

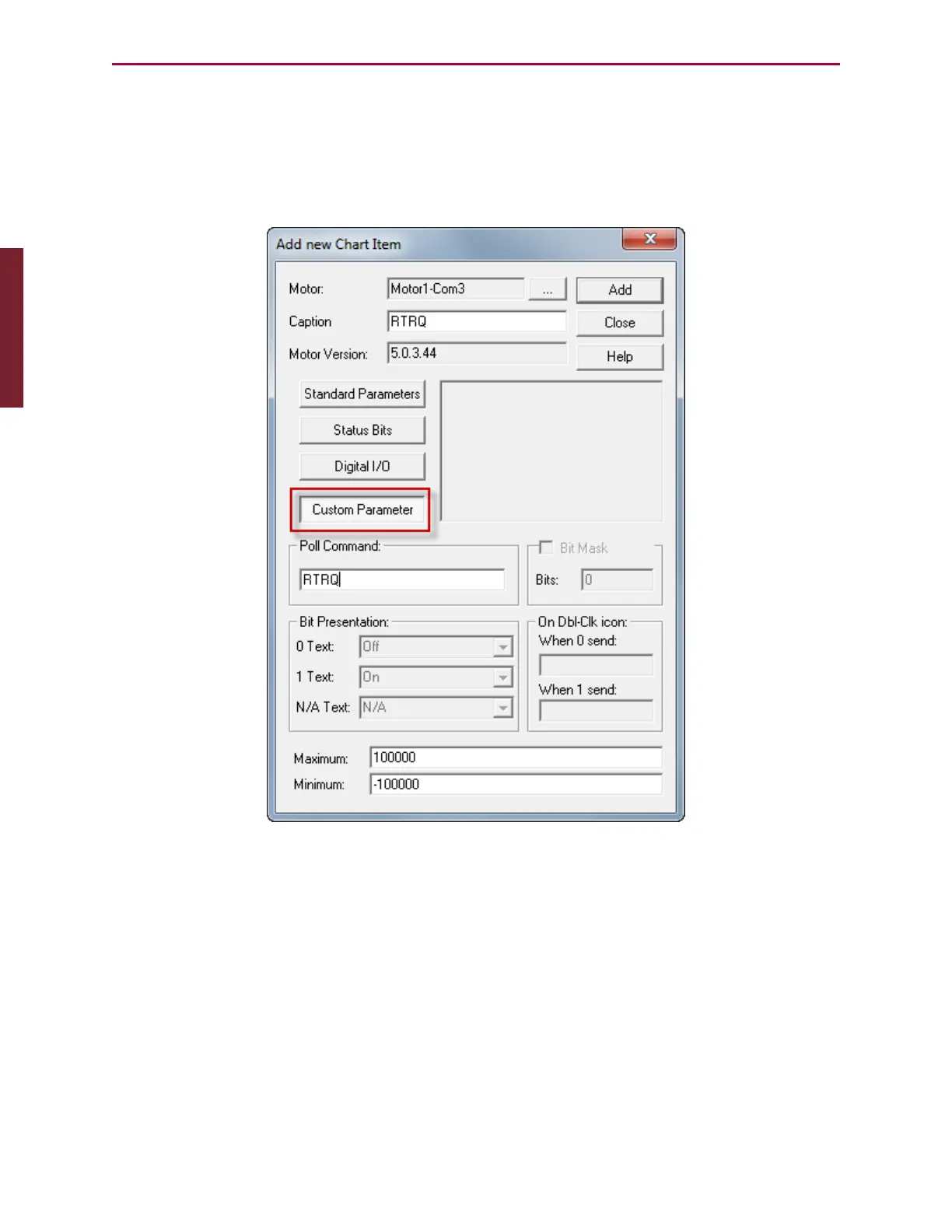

Fill in the text boxes as shown in the following figure.
Custom Parameter Button and Related Entries
NOTE: Be sure the Maximum and Minimum values are set to 10000 and -10000,
respectively, as shown in the previous figure. They default to ten times more than
those values.
