5 - 160 WiNG 5.6 Access Point System Reference Guide
(available publicly) refer to http://www.ietf.org/rfc/rfc3768.txt (version 2) and http://www.ietf.org/rfc/rfc5798.txt (version
3).
7. From within the VRRP tab, select Add to create a new VRRP configuration or Edit to modify the attributes of an existing
VRRP configuration. If necessary, existing VRRP configurations can be selected and permanently removed by selecting
Delete.

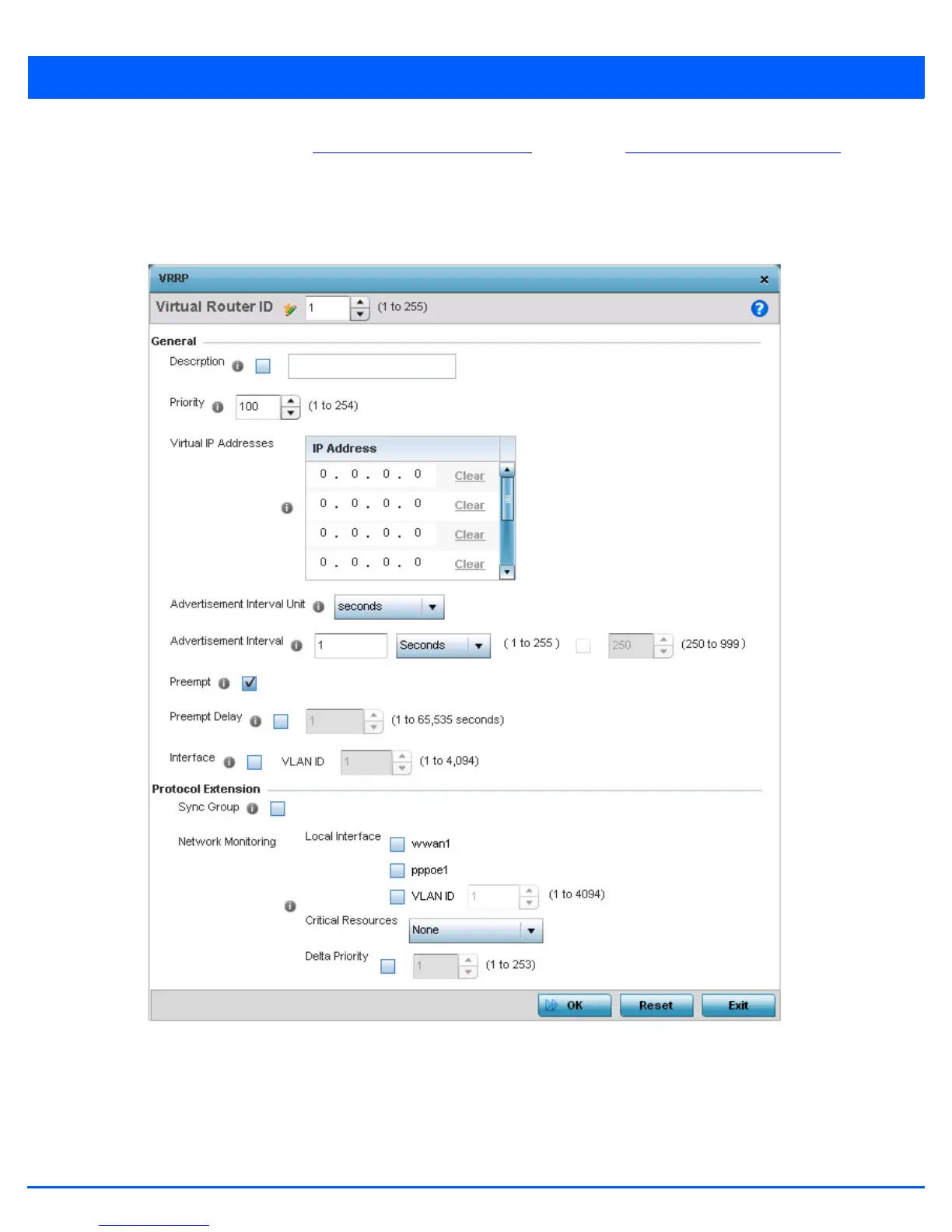

Figure 5-107 Profiles - VRRP screen
8. If creating a new VRRP configuration, assign a Virtual Router ID from 1 - 255. In addition to functioning as numerical
identifier, the ID identifies the access point’s virtual router a packet is reporting status for.
