5.4.5.3.2 Virtual Interface Override Configuration
Profile Interface Override Configuration
A Virtual Interface is required for layer 3 (IP) access or provide layer 3 service on a VLAN. The Virtual Interface defines which
IP address is associated with each VLAN ID. A Virtual Interface is created for the default VLAN (VLAN 1) to enable remote
administration. A Virtual Interface is also used to map VLANs to IP address ranges. This mapping determines the destination
networks for routing.
To review existing Virtual Interface configurations and either create a new Virtual Interface configuration, modify (override) an
existing configuration or delete an existing configuration:
1. Select the Configuration tab from the Web UI.
2. Select Devices from the Configuration tab.
3. Select Device Overrides
4. Select a target device from the device browser in the lower, left-hand, side of the UI.
5. Select Interface to expand its sub menu options.
6. Select Virtual Interfaces.

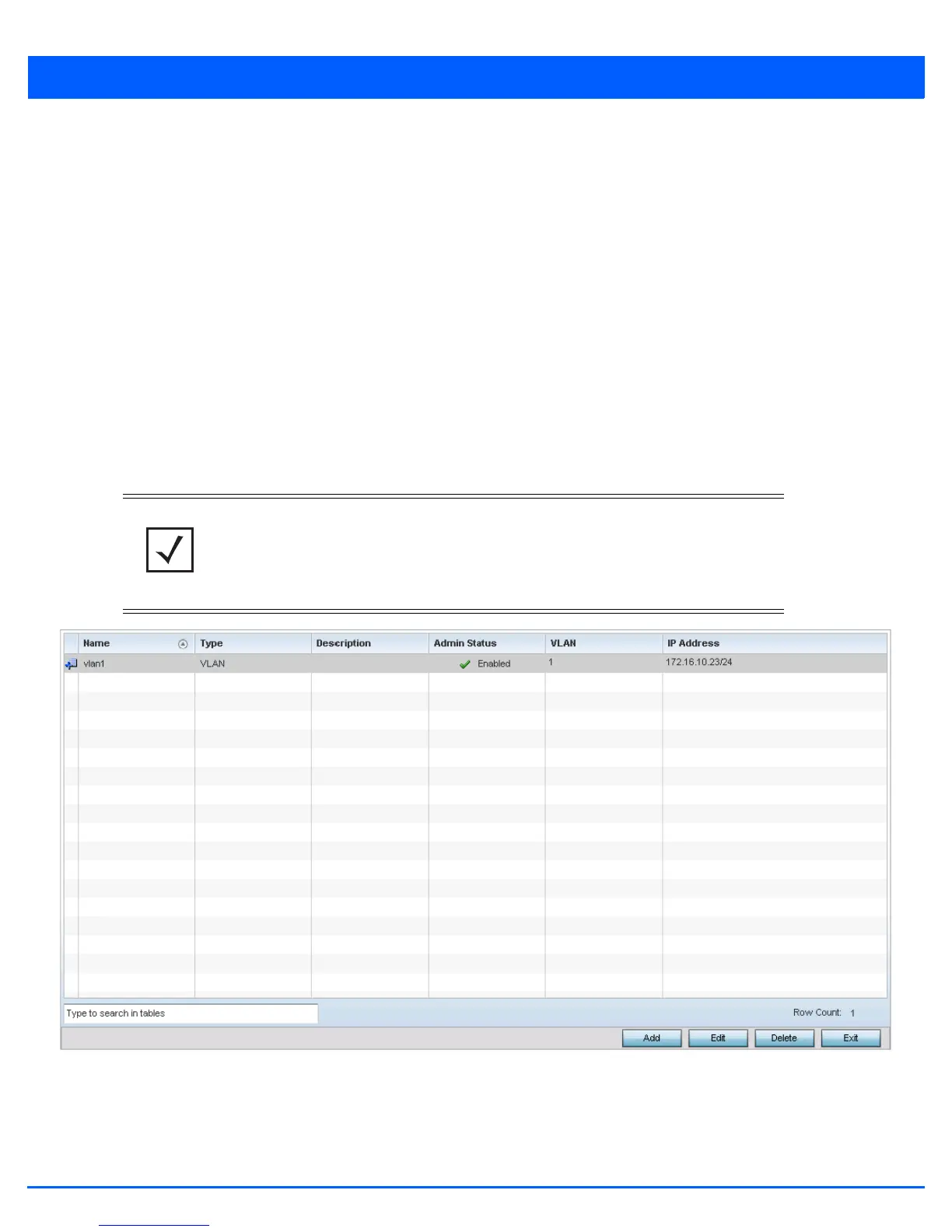

Figure 5-150 Device Overrides - Virtual Interfaces screen
NOTE: A blue override icon (to the left of a parameter) defines the parameter as having
an override applied. To remove a device’s override, go to the Basic Configuration screen’s
Device Overrides field and select Clear Overrides.
