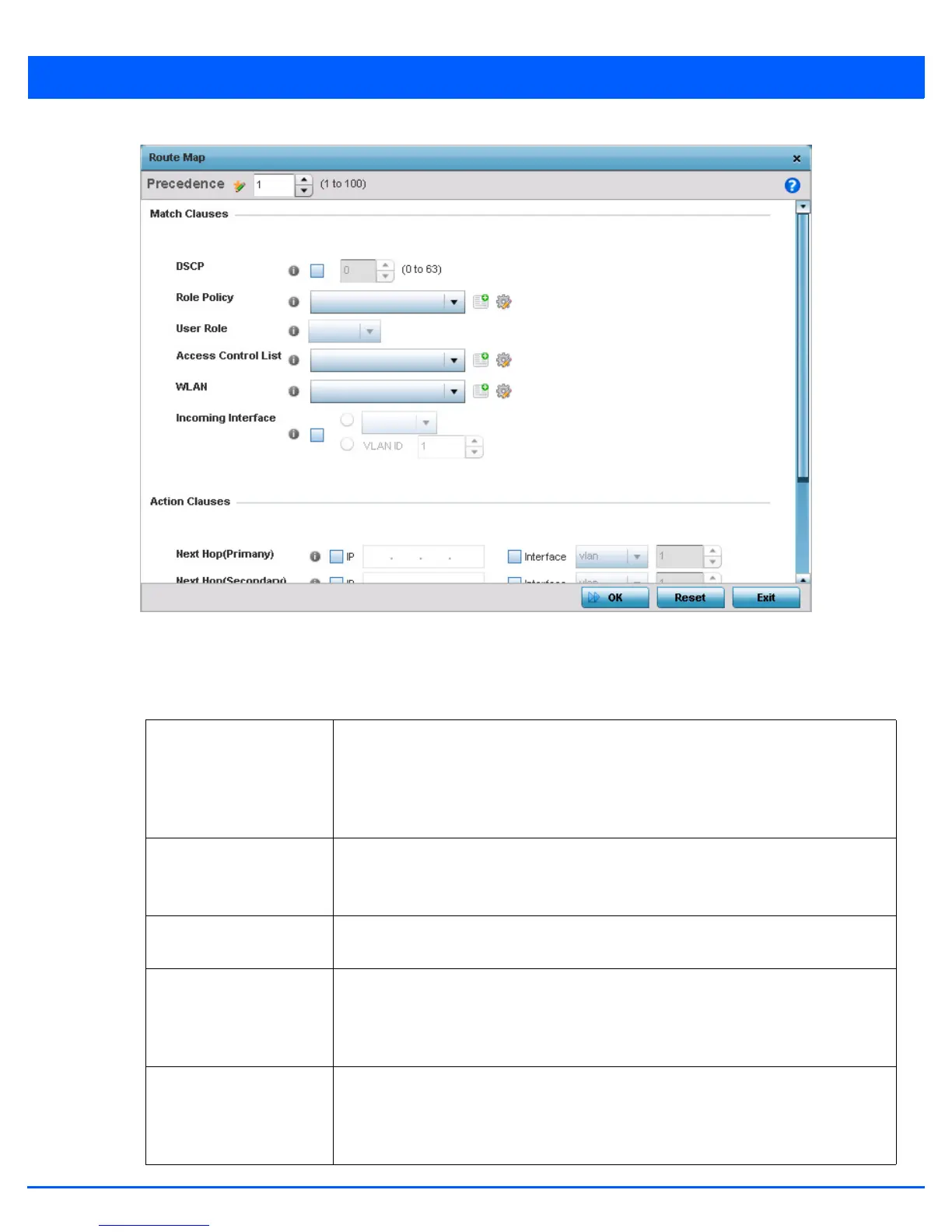

Figure 7-3 Policy Based Routing screen - Add a Route Map
8. Use the spinner control to set a numeric precedence (priority) for this route-map. An incoming packet is matched against
the route-map with the highest precedence (lowest numerical value).
9. Refer to the Match Clauses field to define the following matching criteria for the route-map configuration:
DSCP Select this option to enable a spinner control to define the DSCP value used as matching
criteria for the route map.
DSCP is the Differentiated Services Code Point field in an IP header and is for packet
classification. Packets are filtered based on the traffic class defined in the IP DSCP field.
One DSCP value can be configured per route map entry.
Role Policy Use the drop-down to select a Role Policy to use with this route-map.
Click the Create icon to create a new Role Policy. To view and modify an existing policy,
click the Edit icon.
User Role Use the drop-down menu to select a role defined in the selected Role Policy. This user role
is used while deciding the routing.
Access Control List Use the drop-down menu to select an IP based ACL used as matching criteria for this
route-map.
Click the Create icon to create a new ACL. To view and modify an existing ACL, click the
Edit icon.
WLAN Use the drop-down menu to select the access point WLAN used as matching criteria for
this route-map.
Click the Create icon to create a new WLAN. To view and modify an existing WLAN, click
the Edit icon.
