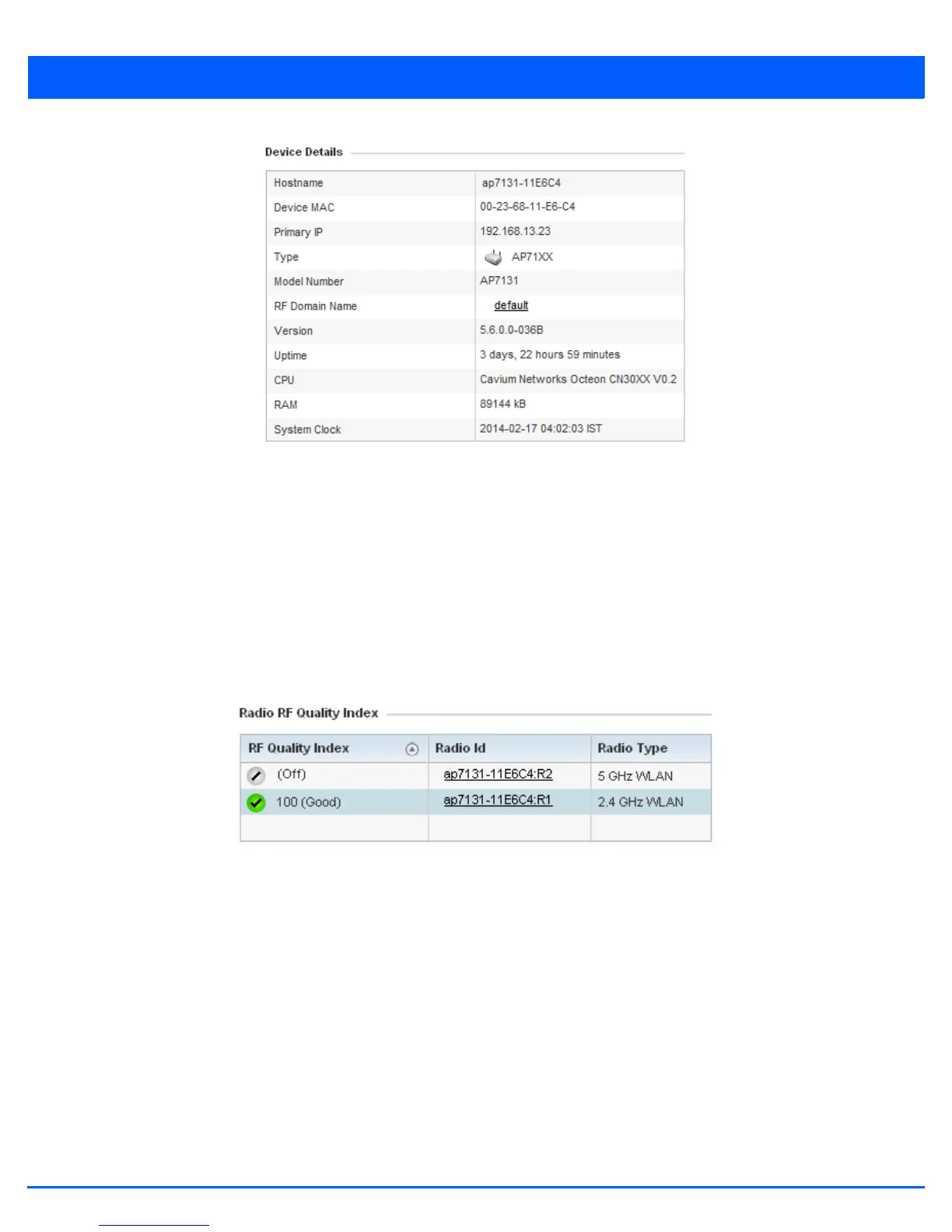

Figure 4-3 Dashboard - Health tab - Device Details field
The Device Details field displays the name assigned to the selected access point, factory encoded MAC address, primary IP
address, model type, RF Domain, software version, uptime, CPU and RAM information and system clock. Use this data to
determine whether a software upgrade is warranted, or if the system clock needs adjustment.
Periodically select Refresh (at the bottom of the screen) to update the data displayed.
4.1.1.1.2 Radio RF Quality Index
Dashboard Conventions
The Radio RF Quality Index displays a RF quality table for the access point’s single default RF Domain. It is a percentage of
the overall effectiveness of the RF environment. It is a function of the data rate in both directions, the retry rate and the error
rate.
Figure 4-4 Dashboard - Health tab - Radio RF Quality Index field
RF Quality displays as the average quality index for the single RF Domain utilized by the access point. The table lists the bottom
five (5) RF quality values for the RF Domain.
The quality is measured as:
• 0-20 – Very poor quality
• 20-40 – Poor quality
• 40-60 – Average quality
• 60-100 – Good quality
The access point’s RF Domain allows an administrator to assign configuration data to multiple devices deployed in a common
coverage area, such as in a floor, building or site. The RF Domain contains policies that can determine a Smart RF or WIPS
configuration.
Use this diagnostic information to define measures to improve radio performance in respect to wireless client load and radio
band.
