Dashboard 4 - 5
Periodically select Refresh (at the bottom of the screen) to update the RF quality data.
4.1.1.1.3 Radio Utilization Index
Dashboard Conventions
The Radio Utilization Index displays how efficiently the RF medium is used by the access point. Traffic utilization is defined
as the percentage of throughput relative to the maximum possible throughput.
Refer to the number or errors and dropped packets to assess radio performance relative to the number of packets both
transmitted and received.
Periodically select Refresh (at the bottom of the screen) to update the radio utilization information displayed.

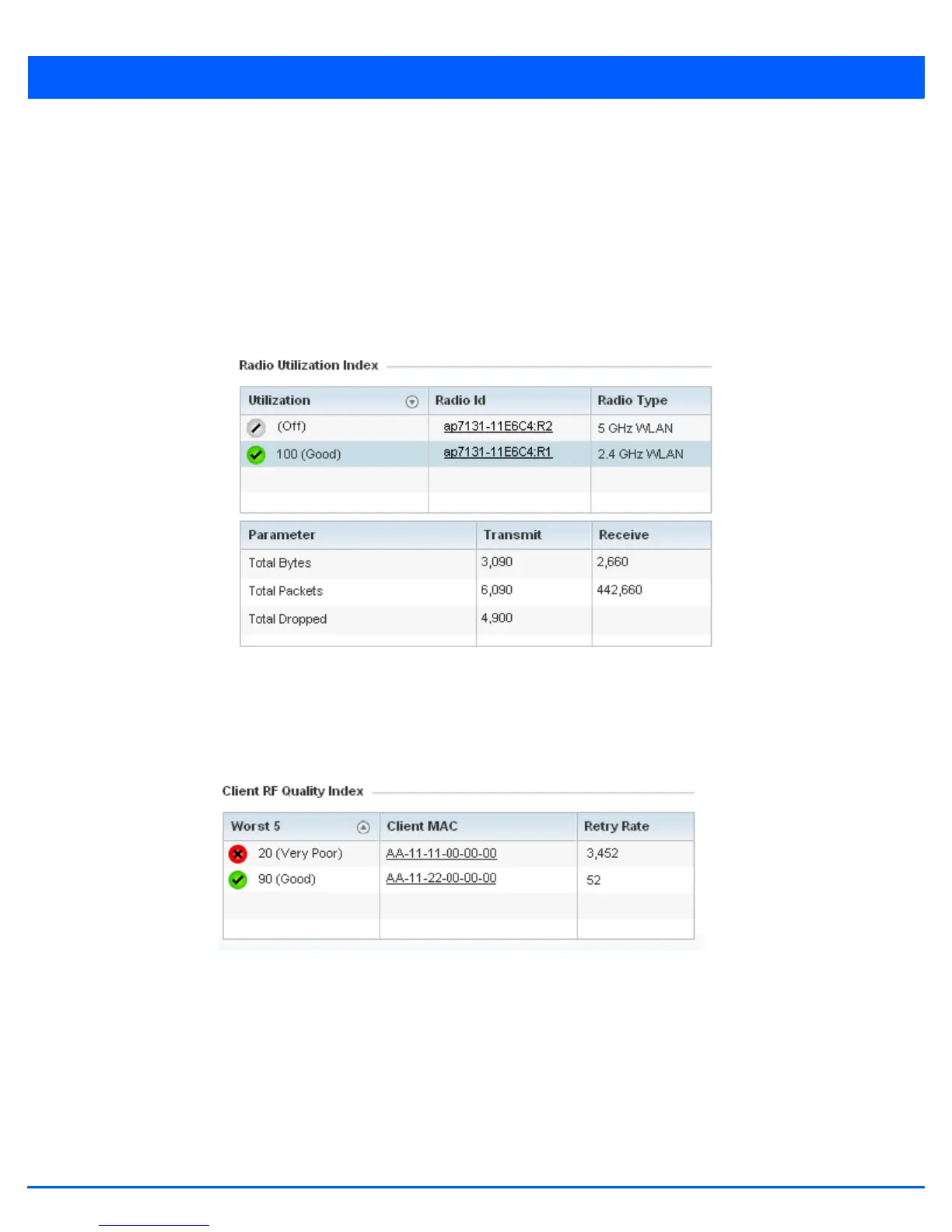

Figure 4-5 Dashboard - Health tab - Radio Utilization Index field
4.1.1.1.4 Client RF Quality Index
Dashboard Conventions
The Client RF Quality Index displays a list of the worst 5 performing clients managed by the selected access point.
Figure 4-6 Dashboard - Health tab - Client RF Quality Index field
