4.1.1.2.1 Radio Types
Inventory
The Radio Types field displays the total number and types of radios managed by the selected access point.

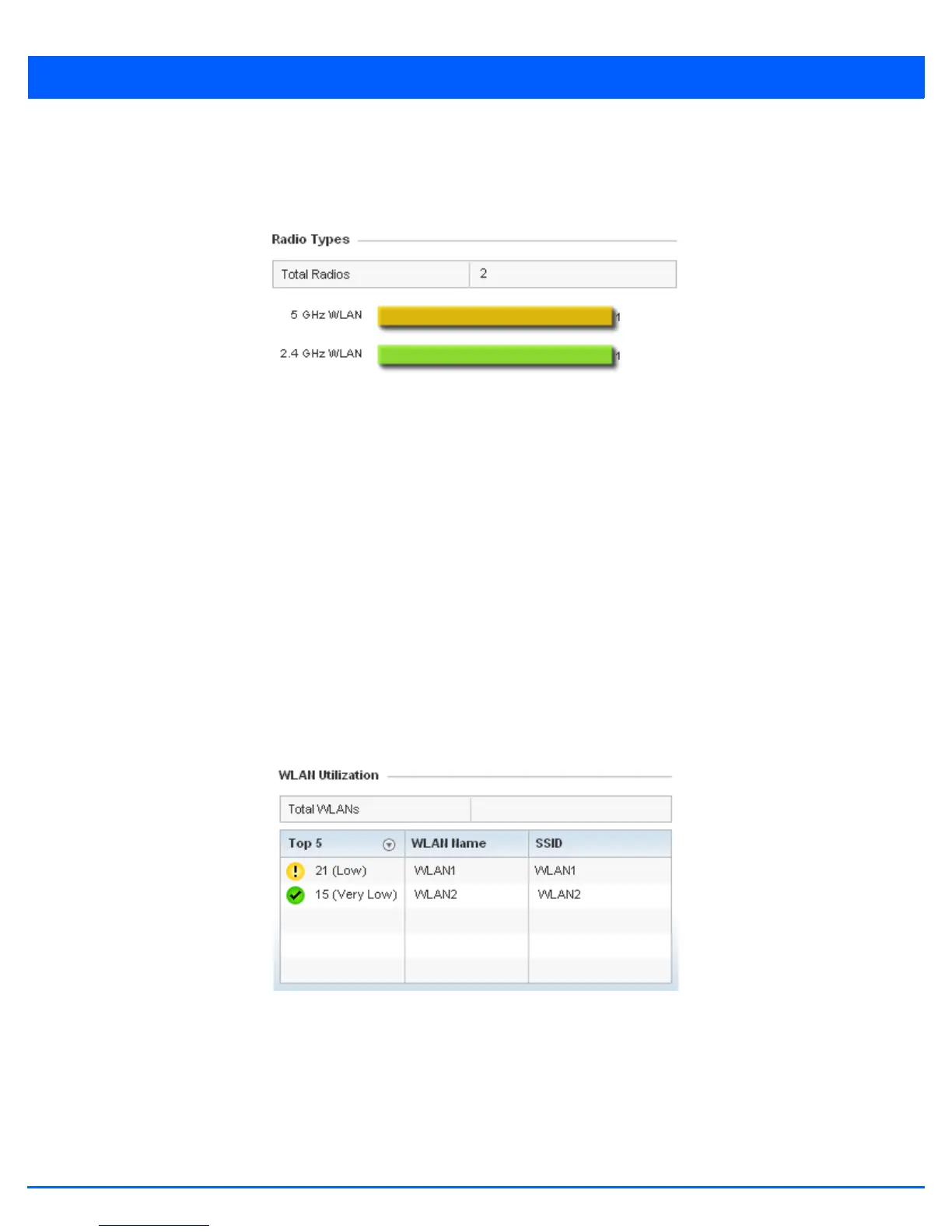

Figure 4-8 Dashboard - Inventory tab - Radio Types field
Refer to the Total Radios column to review the number of managed radios. Additionally, use the bar graphs to assess the
number WLANs utilized by supported radio bands.
Periodically select Refresh (at the bottom of the screen) to update the radio information.
4.1.1.2.2 WLAN Utilization
Inventory
The WLAN Utilization field displays the top 5 WLANs utilized by this access point in respect to client support. The utilization
index measures how efficiently the RF medium is utilized. It is defined as a percentage of the current throughput relative to the
maximum throughput possible.
The quality is measured as:
• 0-20 – Very low utilization
• 20-40 – Low utilization
• 40-60 – Moderate utilization
• 60 and above – High utilization
Figure 4-9 Dashboard - Inventory tab - WLAN Utilization field
Periodically select Refresh (at the bottom of the screen) to update WLAN utilization information.
4.1.1.2.3 Wireless Clients
Inventory
The Wireless Clients field displays information about the wireless clients managed by the selected access point.
