Spitfire – Maintenance Manual
125
AP-74096, Rev. 1.0, 09/06/05
Step 5 : To reinstall the wiper assembly (after installing and cleaning the new wipers) please reverse the
removal procedure.
Step 6 : After complete reinstallation, clean the wipers using Spitfire Cleaning Liquid.

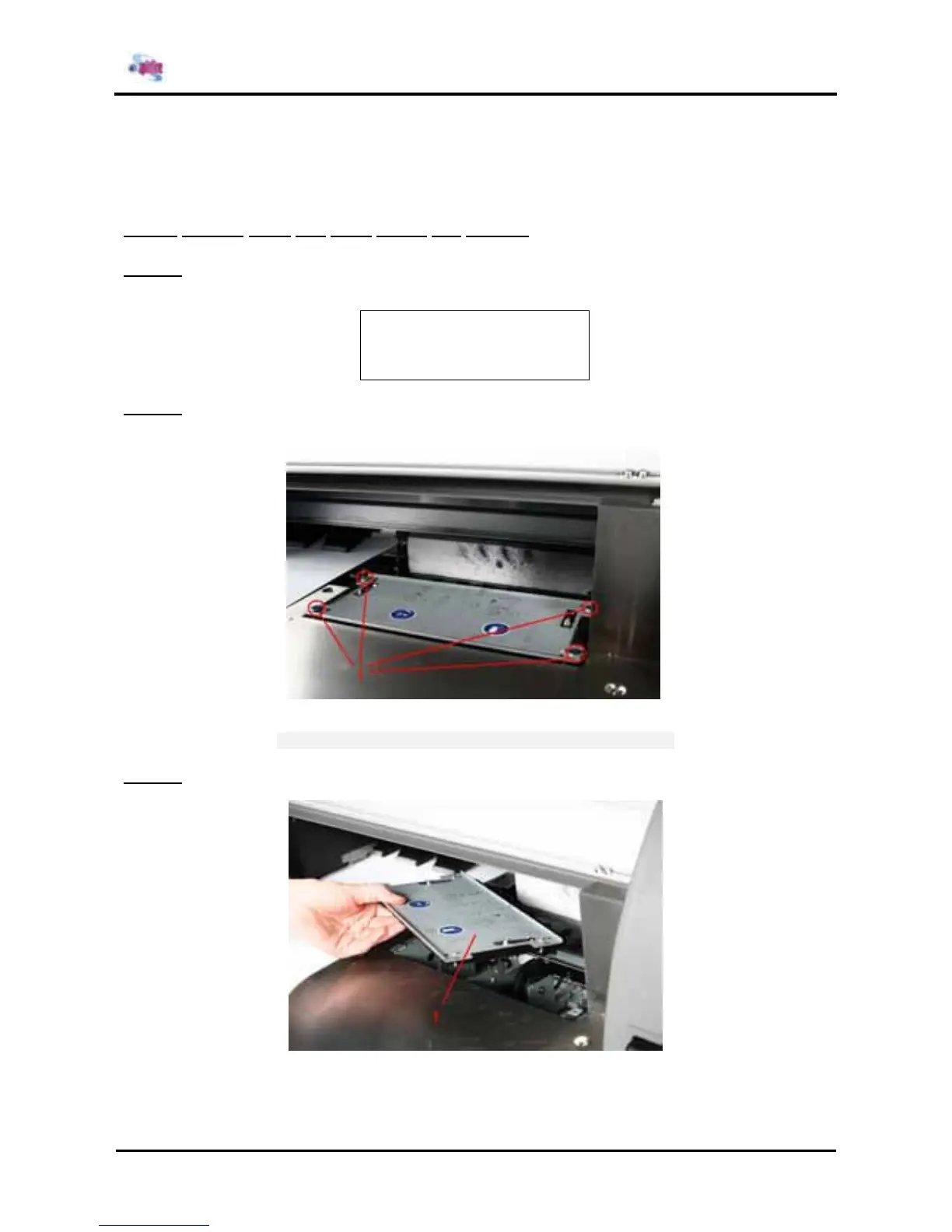

4.8.4.3 Change wiper arm assy, wipers and sponge.
Step 1 : Power ON the printer and go to the “WiperClean-Menu”. This will cause the unlocking of the
carriage.
* WiperClean *
Changed wiper?
→ ENTER
Step 2 : Slide the carriage to the left side of the machine so you can remove the four screws of the wiper
assembly.
1
Screws
Step 3 : Remove the wiper assembly (1)
