Spitfire – Maintenance Manual
134
AP-74096, Rev. 1.0, 09/06/05

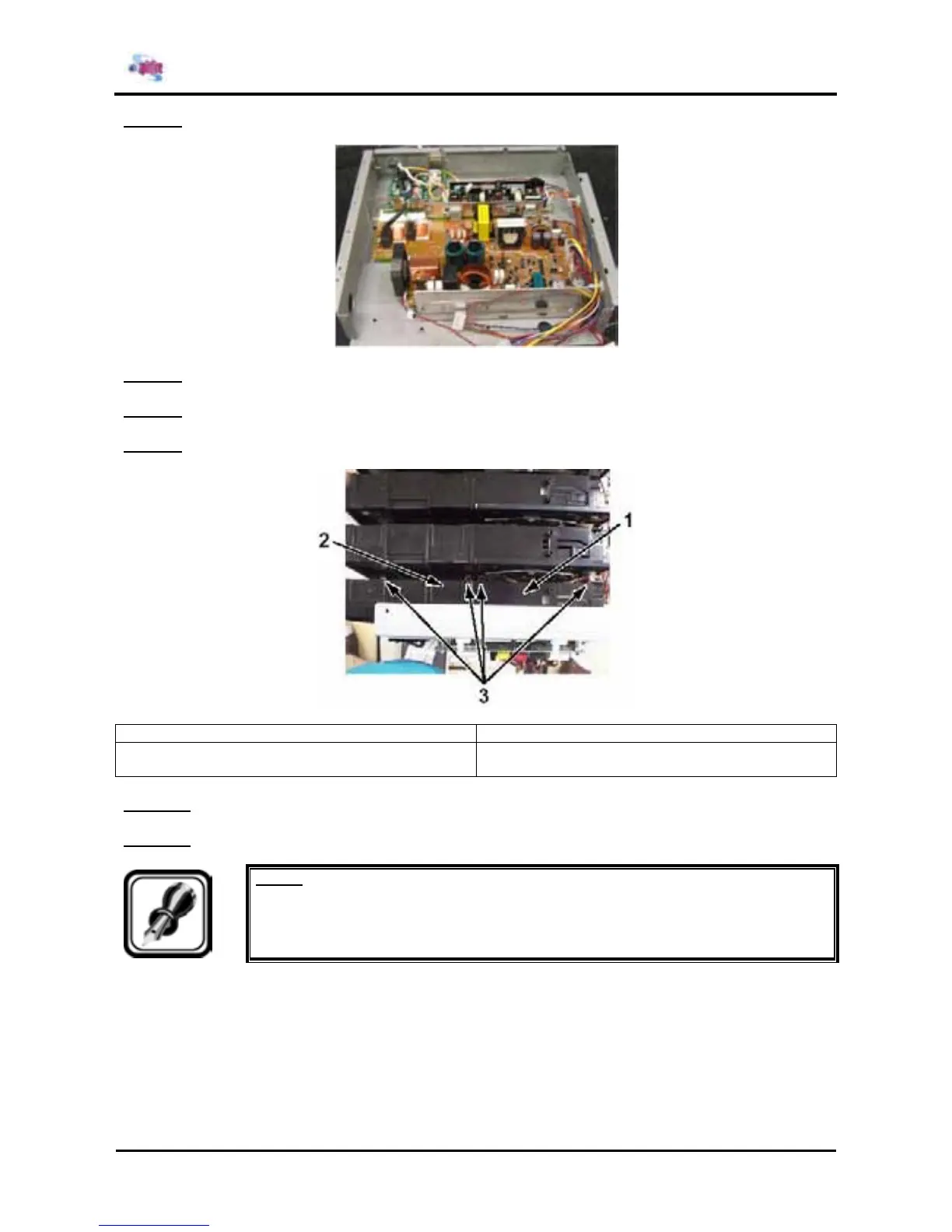

Step 6 : Remove the 3 screws fixing the P/S board installation board.
Step 7 : Remove the P/S board installation board.
Step 8 : Remove the coupling screws and O-ring from the I/H assembly.
Step 9 : Remove the 4 screws fixing I/C slide 2 and the I/H assembly.
1 = I/H assembly 2 = I/C slide 2
3 = Screws (M3x8) fixing I/C slide 2 and the I/H
assembly
Step 10 : Remove the I/H assembly.
Step 11 : Reinstall all parts in the opposite order of the removal procedure.
Notes :
¾ Please soak the O-ring in cleaning liquid before installation.
To Next Page
