Spitfire – Maintenance Manual
236
AP-74096, Rev. 1.0, 09/06/05

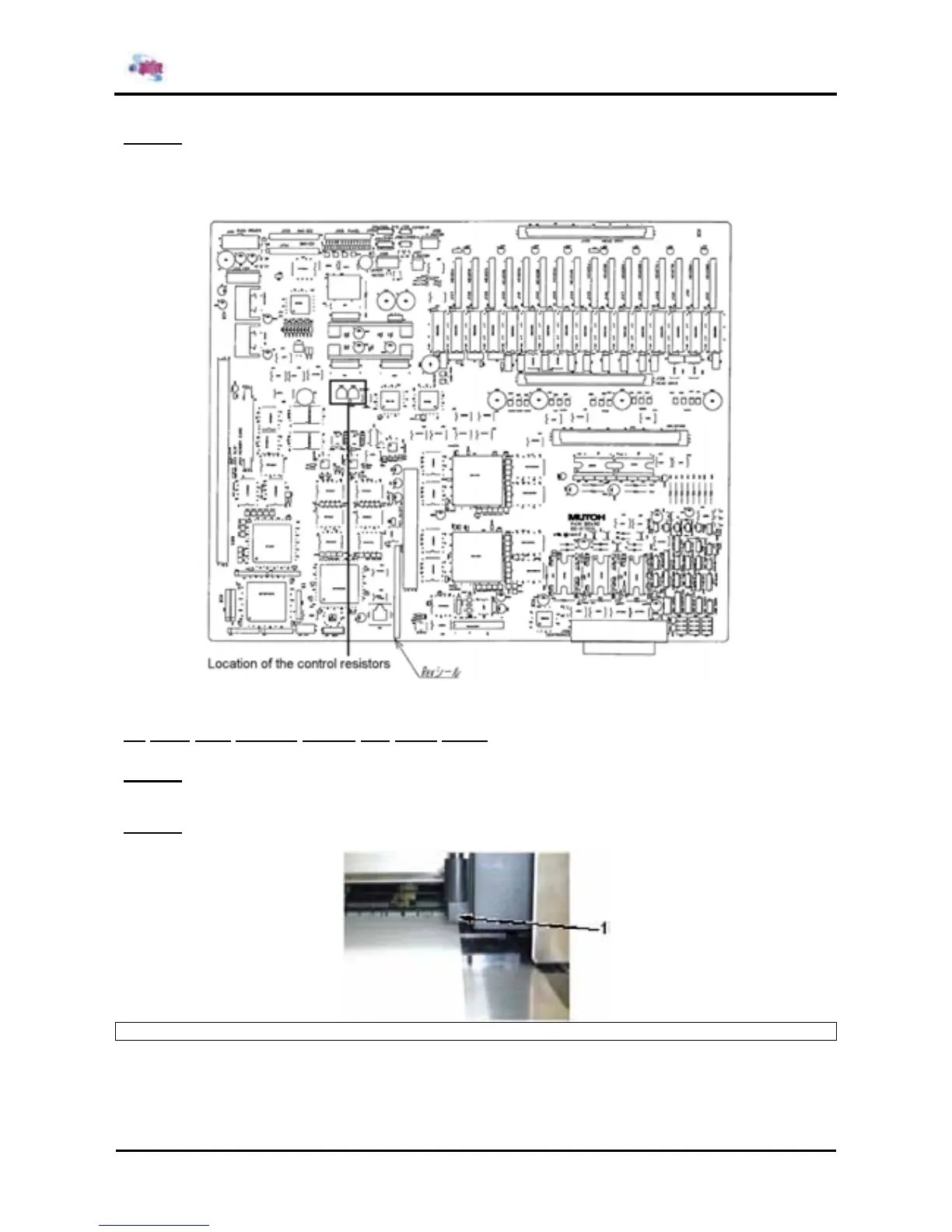

Step 9 : Adjust the P_EDGE sensor control shown in the following figure so that the values displayed in
the operation panel become the adjustment value.
¾ Control R693: Rough adjustment
¾ Control R694: Fine adjustment
(2) LOW level (without media) A/D value check
Step 1 : Adjust the A/D value of the HIGH level following the "(1) HIGH level A/D value adjustment"
procedure.
Step 2 : Align the cutter and the right edge of the standard media by moving the carriage.
1 = Razor Blade
To Next Page
