Spitfire – Maintenance Manual
61
AP-74096, Rev. 1.0, 09/06/05
Step 4 : Remove the Y rail cover.
Step 5 : Remove the front paper guide.
Step 6 : Remove the post fixer strip.
Step 7 : Degrease the plate.
Notes :
¾ Make sure the plate is cleaned properly. Dust, glue and other parts must be
removed.
Step 8 : Stick the post fixer strip onto the plate.
Notes :
¾ Make sure that the strips connect properly.
¾ Stick it as close as possible to the assembly holes. Make sure it does not touch the
assembly holes.
Notes :
¾ Please make sure that there are no air bubbles under the heater strip. Air bubbles
below the heater strip could cause overheating of the heater strip.

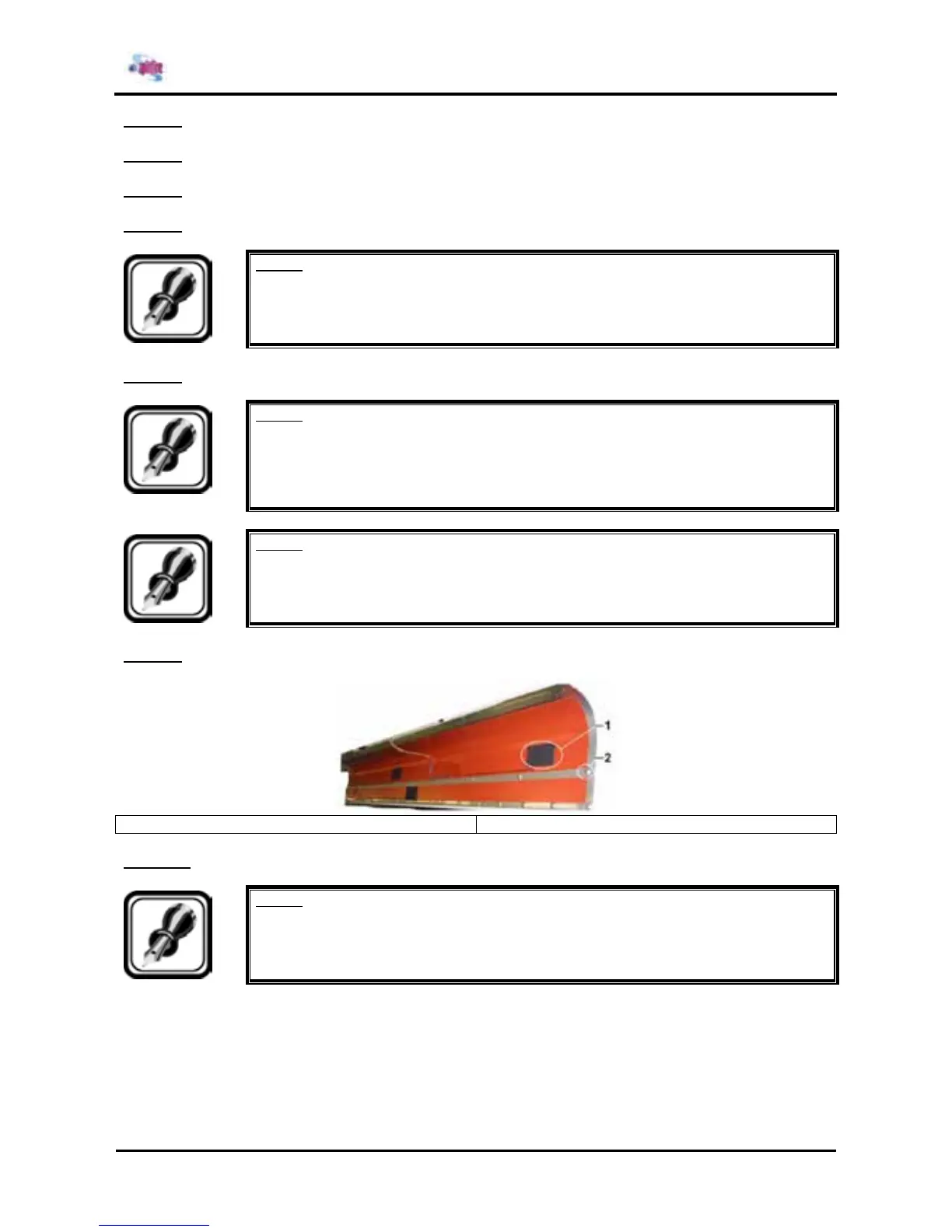

Step 9 : Stick onto the sensor a sensor insul. patch.
1 = sensor insul. patch 2 = assembly hole
Step 10 : Reinstall all parts in the opposite order of the removal procedure.
Notes :
¾ During reinstallation of the plate, make sure there are no cables stuck.
