Spitfire – Maintenance Manual
63
AP-74096, Rev. 1.0, 09/06/05

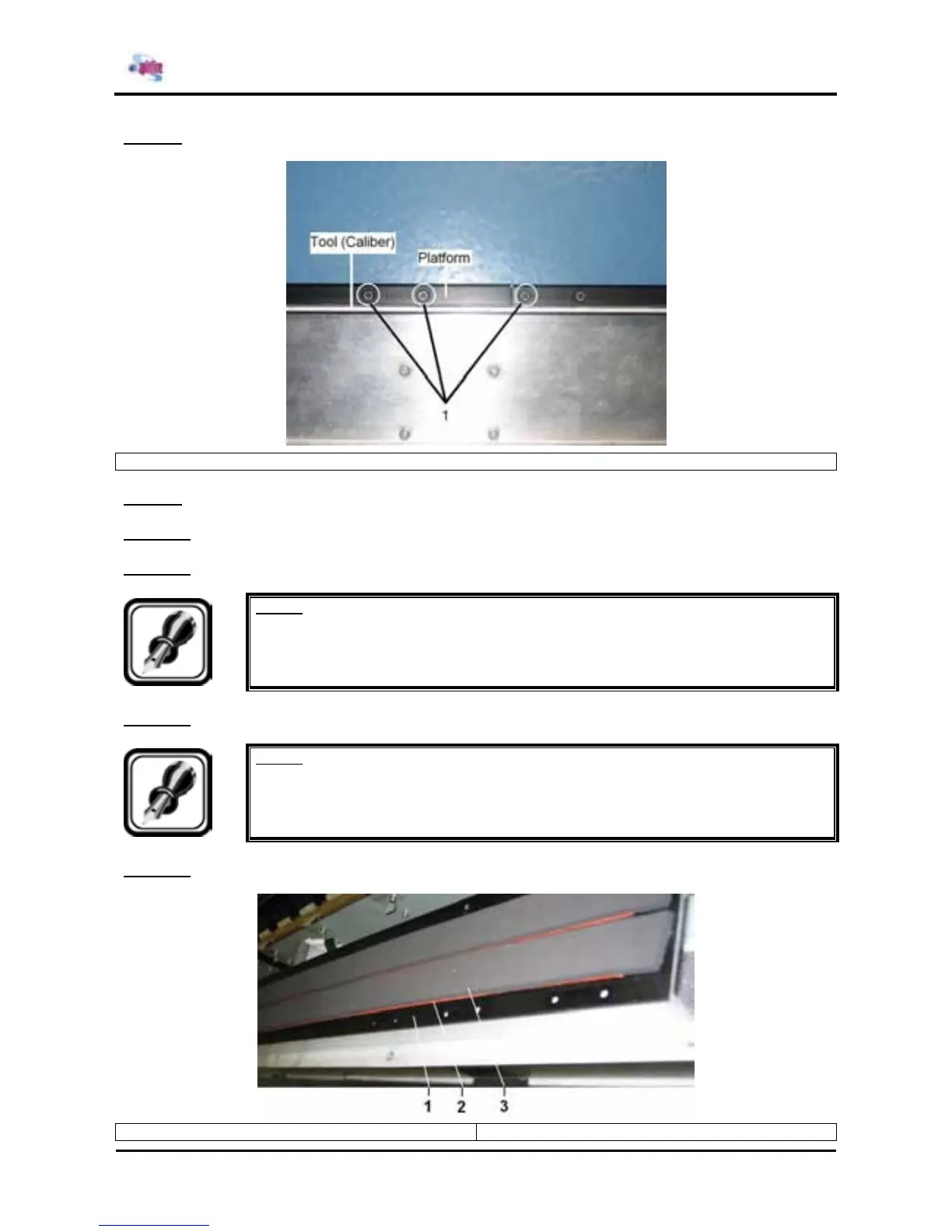

Step 8 : Remove the screws of the plot platform.
1 = screws plot platform
Step 9 : Pull upwards the plot platform calibre and so remove the plot platform with fixer.
Step 10 : Remove the fixer.
Step 11 : Degrease the plot platform.
Notes :
¾ Make sure the plate is cleaned properly. Dust, glue and other parts must be
removed.
Step 12 : Stick the two fixer strips onto the plot platform.
Notes :
¾ Please make sure that there are no air bubbles under the heater strip. Air bubbles
below the heater strip could cause overheating of the heater strip.
Step 13 : Stick the isolation tape onto the heater strips.
1 = plot platform 2 = fixer heater strip
