Spitfire – Maintenance Manual
65
AP-74096, Rev. 1.0, 09/06/05

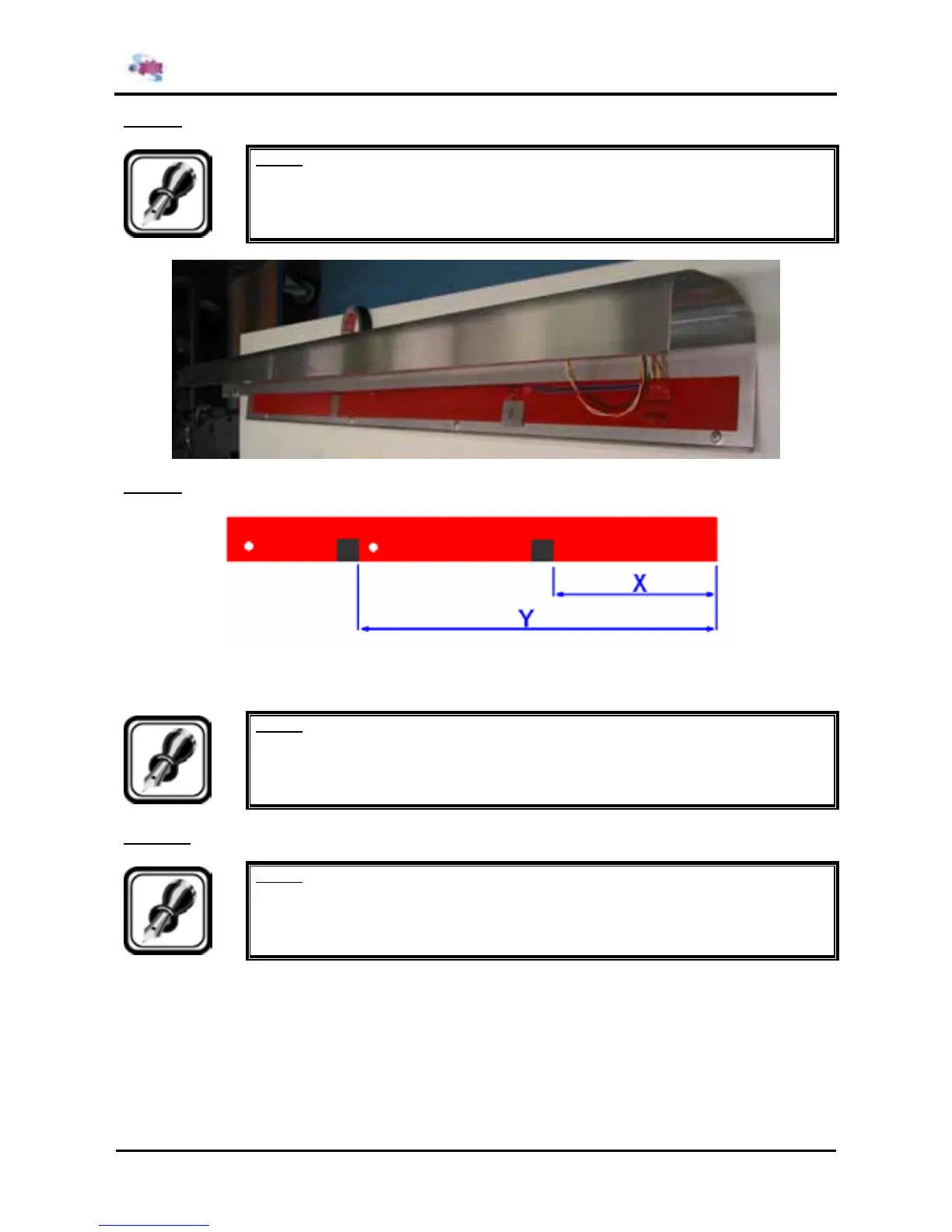

Step 8 : Stick the heater strip onto the plate.
Notes :
¾ Please make sure that there are no air bubbles under the heater strip. Air bubbles
below the heater strip could cause overheating of the heater strip.
Step 9 : Stick (with silicone glue) the two press plates onto the heater strip.
¾ 65” model : X = 380 mm / Y = 1060 mm
¾ 90” model : X = 660 mm / Y = 1200 mm / Z = 1750 mm
Notes :
¾ It will take ± 1 hour to let the glue dry.
Step 10 : Reinstall all parts in the opposite order of the removal procedure.
Notes :
¾ During reinstallation of the plate, make sure there are no cables stuck.
