Spitfire – Maintenance Manual
87
AP-74096, Rev. 1.0, 09/06/05

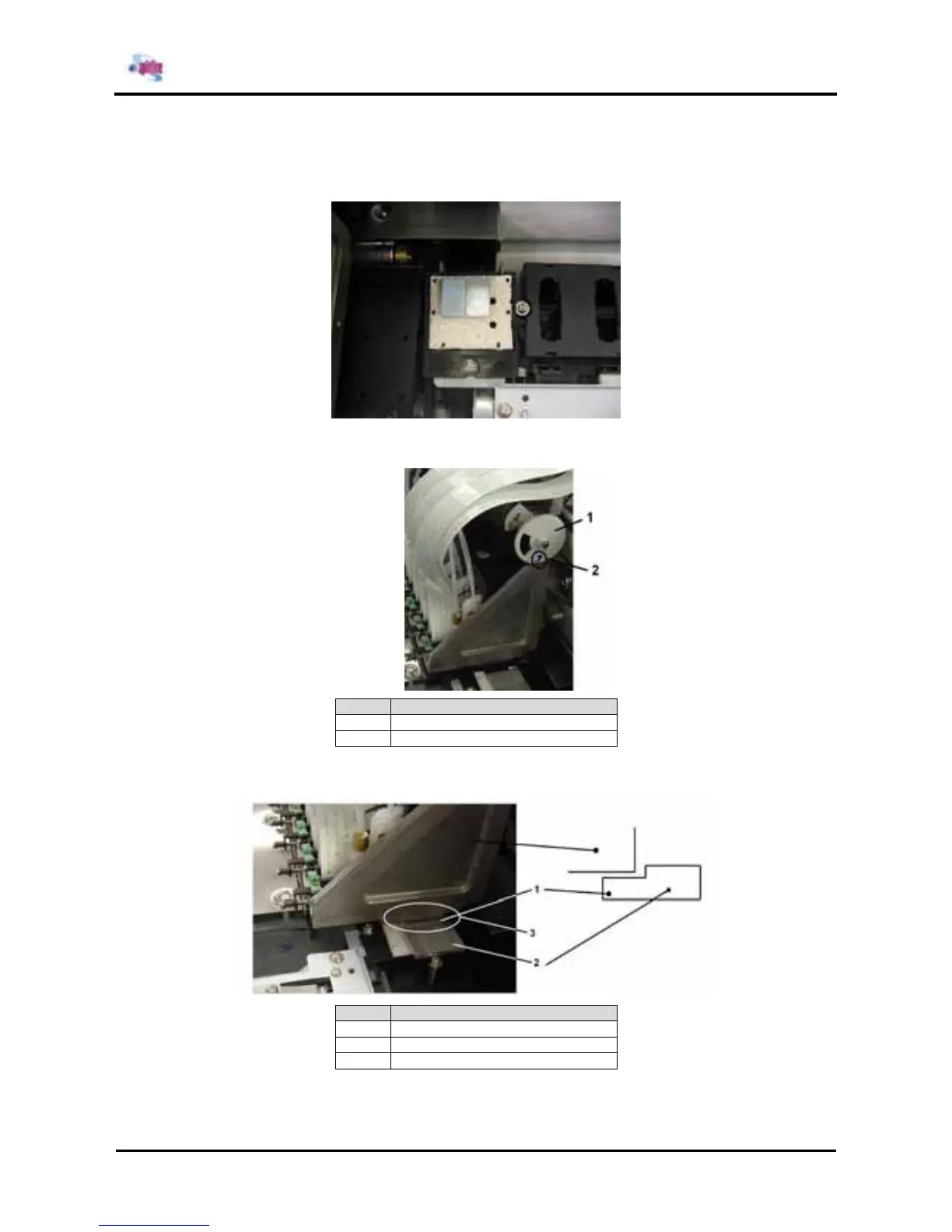

Step 7 : Adjust the head and flushing box height.
Before adjustment of the flushing box height position, please make sure to have the “Flush Box
Height Jig Tool” (JD-80001)
1) Place the flushing box height jig tool on the flushing box as shown below:
2) Turn the wheel of the carriage until the arrow is on the bottom so the carriage is in the lowest
position.
Nr. Part Description
1 Carriage wheel
2 Arrow
3) Carefully move the carriage to the right. The carriage should pass the first interval but not the
second.
Nr. Part Description
1 Interval 1
2 Interval 2
3 Reference of the head
4) When the carriage passes both intervals, move the carriage to the left. Loosen the adjustment
screw of the flushing box a bit and put the flushing box on the correct height and then tighten the
screw.
