Spitfire – Maintenance Manual
88
AP-74096, Rev. 1.0, 09/06/05

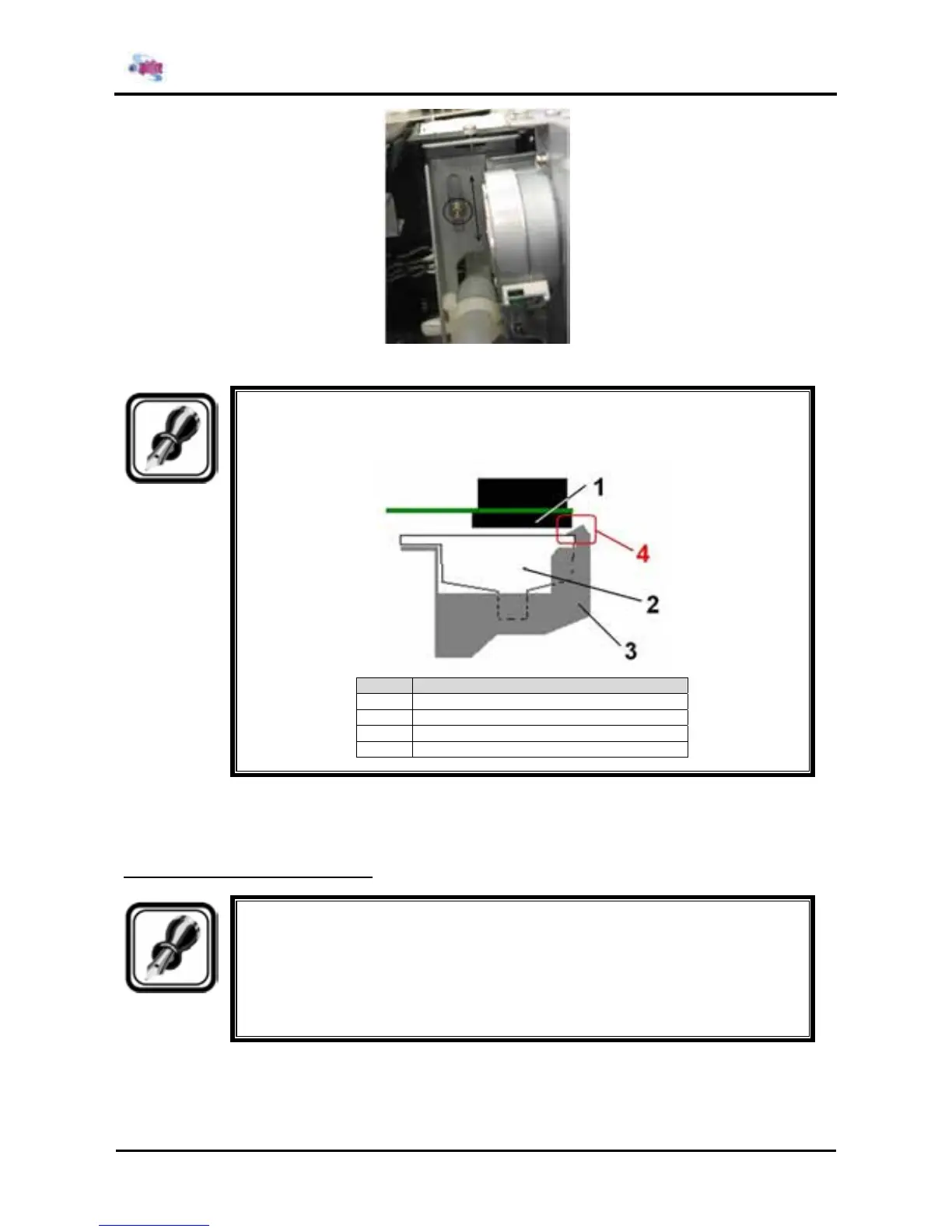

Notes:
Check in headheight low if the heads does not interfere with the backside of the
bracket. If there is interference, you have to lower the spitting box.
Nr. Part Description
1 Heads
2 Spitting box
3 Bracket
4 Crucial point where heads pass the bracket
Step 8 : Lock the head
Step 9 : The installation of the new flushing box is finished.
2) Replacing the sponge (KY-42889)
.
Notes:
Replace the sponge in these situations:
Î after one month (periodical service by end user)
Î the sponge bends or is saturated
Î inkdrops on the media can be caused by a saturated or bended sponge
