Spitfire – Maintenance Manual
90
AP-74096, Rev. 1.0, 09/06/05

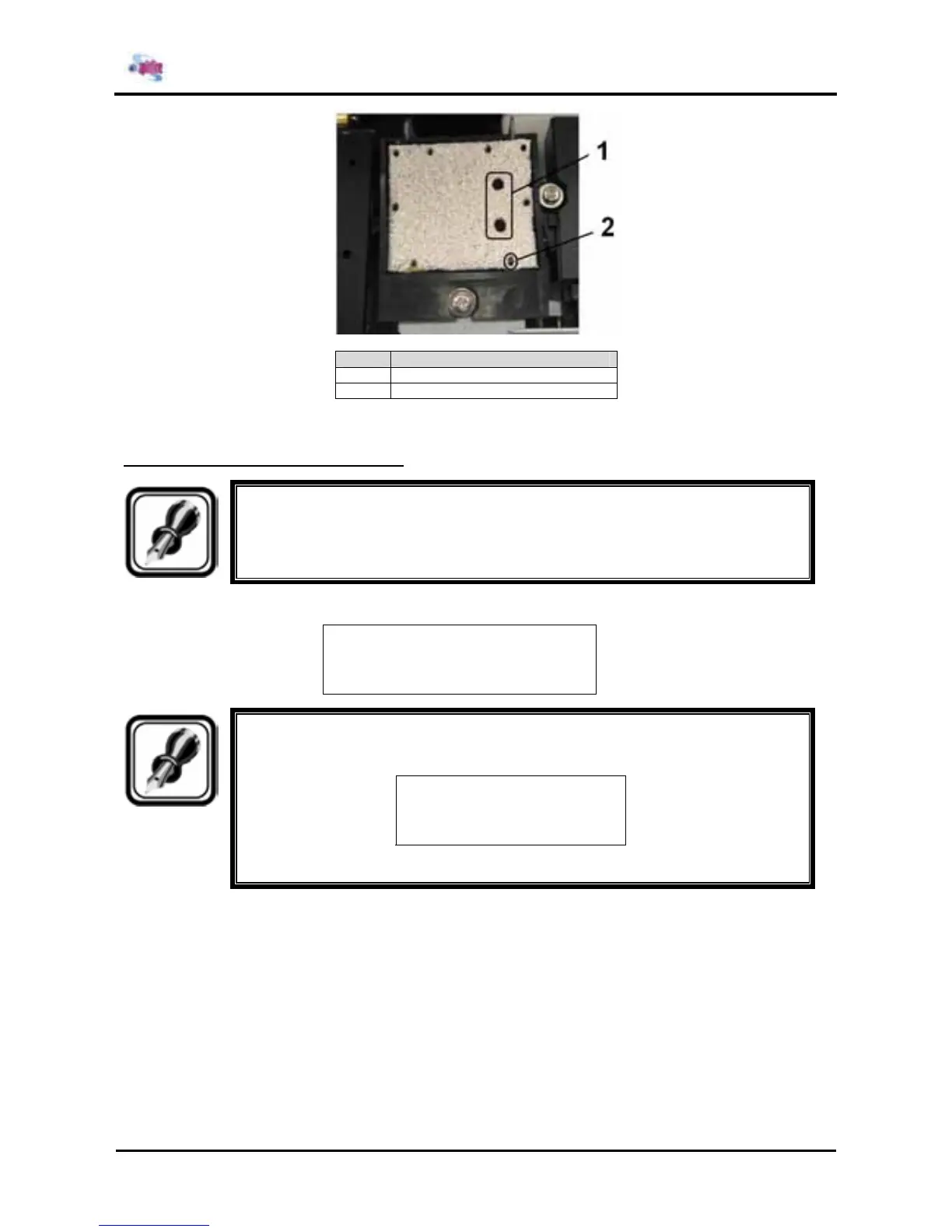

Nr. Part Description
1 Two holes
2 Pin of black box
Step 5 : Lock the head
3) Replacing the spitting box (DE-35085)
.
Notes:
Replacing the black box is a part of the periodical services done by the end user. It
should be done every 6 months.
Step 1 : Unlock the head
*WiperClean*
F1 →
No Yes
← F2
(1/1)
Notes:
Following display will appear.
*WiperClean*
Changed Wiper?
→ Press ENTER
After job is done, press the ENTER key, and the head will lock again.
Step 2 : The carriage moves to the waiting position for replacing the black box.
Loosen the screw tightening the black box to the bracket and replace the black box.
To Next Page
