1 ENGINE SYSTEMS 13

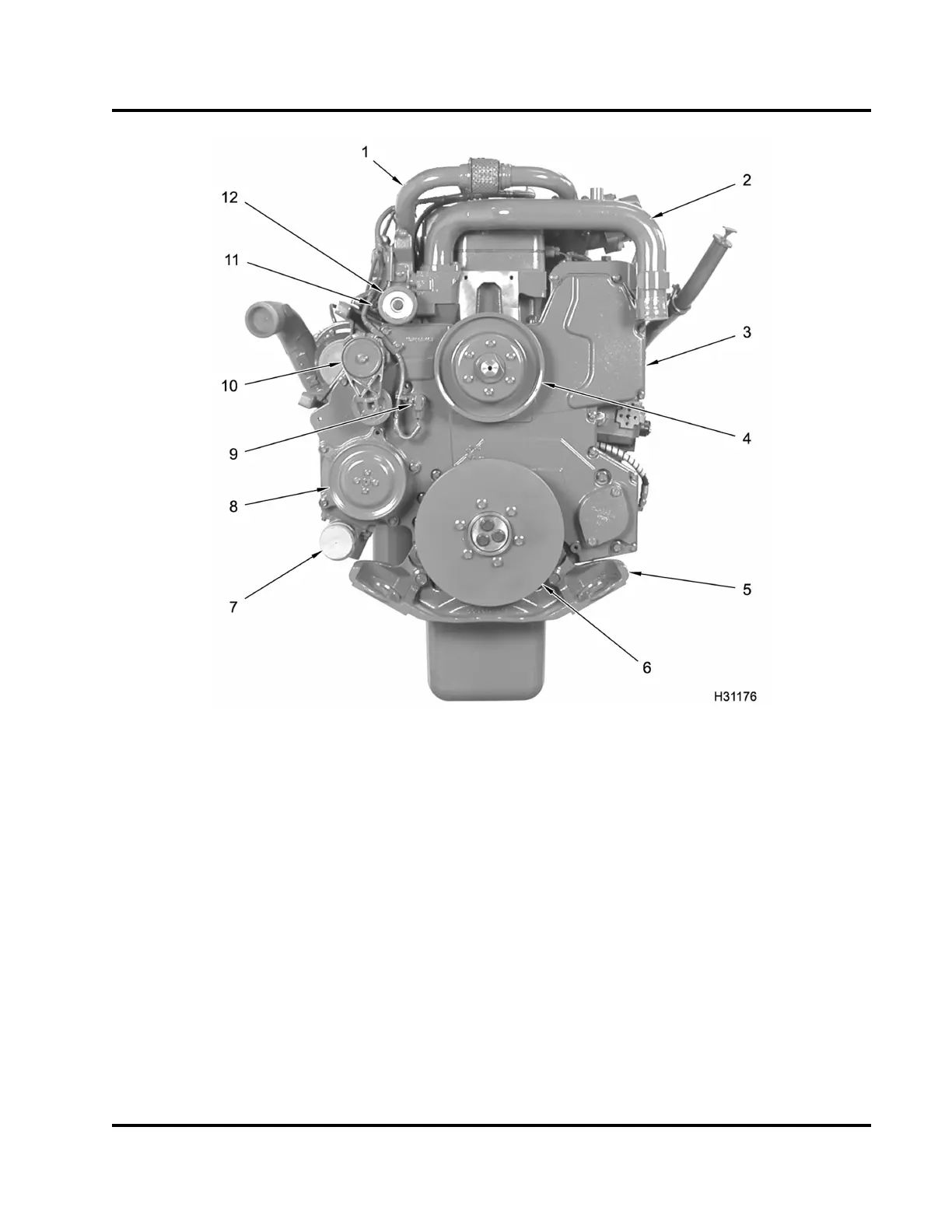

Figure 4 Component location – front
1. Exhaust gas crossover (EGR
cooler to EGR valve)
2. Water outlet tube assembly
(thermostat outlet)
3. Front cover (front half)
4. Fan drive pulley
5. Engine mounting bracket (front)
6. Vibration damper
7. Water inlet elbow
8. Water pump pulley
9. Camsha ft Po sition (CMP) s ensor
10. Auto tensioner a ssembly (belt)
11. ECT sensor (location)
12. Flat idler pulley assembly
EGES-270-1
Read all safety instructions in the "Safety Information" section of this manual before doing any procedures.
Follow all warnings, cautions, and notes.
© August 2008 Navistar, Inc.
