1 ENGINE SYSTEMS 17

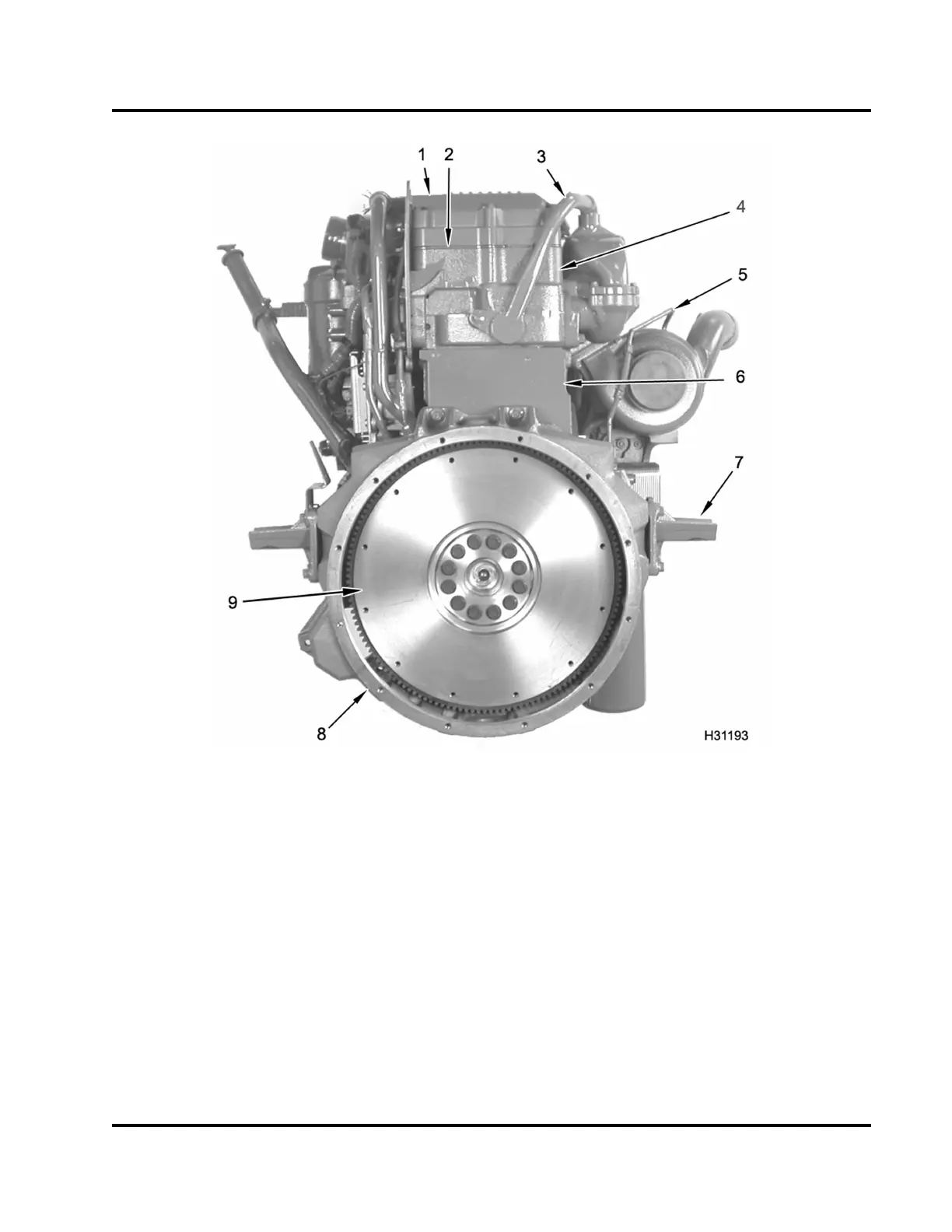

Figure 8 Component location – rear
1. Valve cover
2. Valve cover gasket with
pass-through connectors
3. EGR cooler return tube
assembly
4. Cylinder head assembly
5. Turbo oil inlet tube (supply)
6. Crankcase
7. Rear engine mount bracket (2)
8. Flywheel housing
9. Flywheel or flexplate assembly
EGES-270-1
Read all safety instructions in the "Safety Information" section of this manual before doing any procedures.
Follow all warnings, cautions, and notes.
© August 2008 Navistar, Inc.
