16 1 ENGINE SYSTEMS

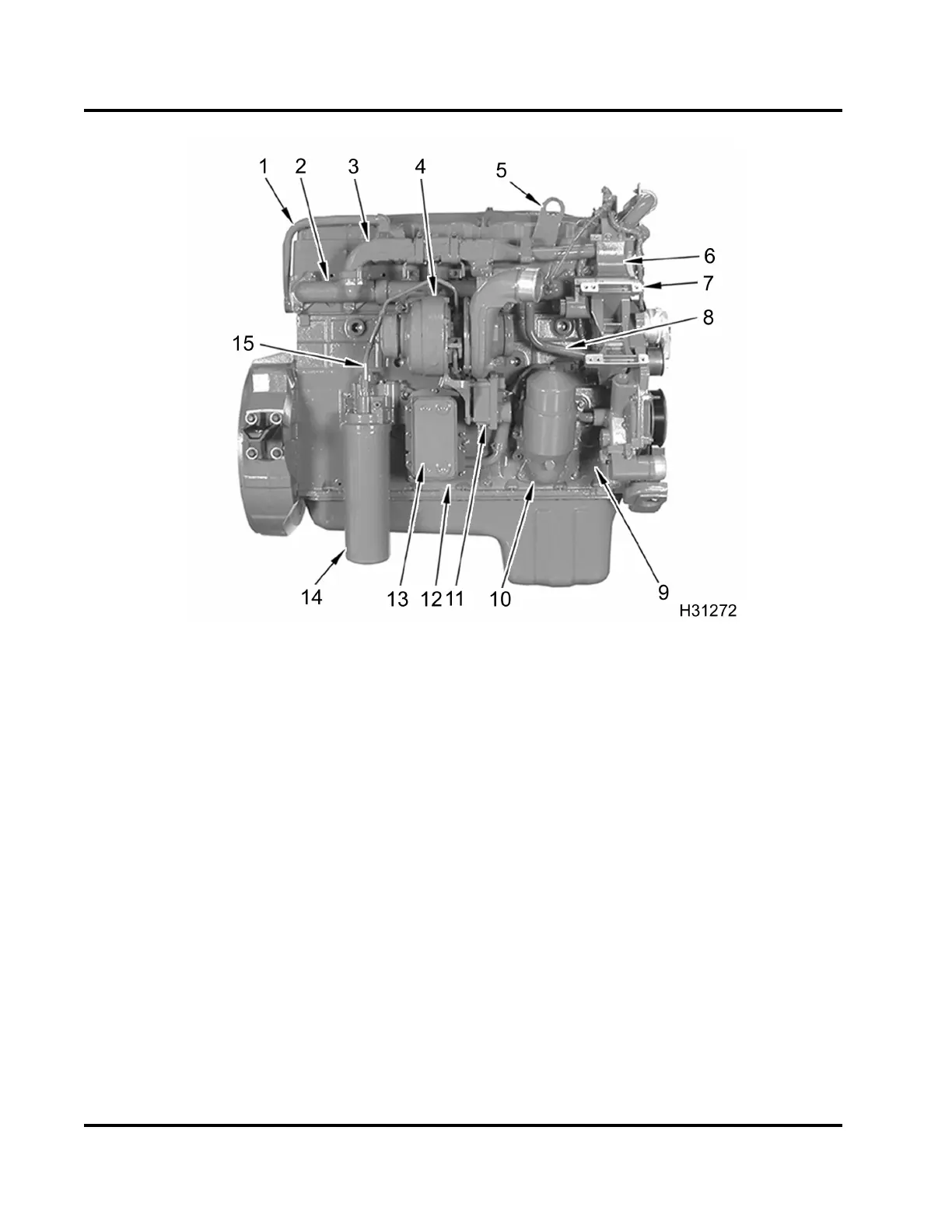

Figure 7 Component location – right
1. EGR cooler return tube
assembly
2. Exhaust manifold assembly
3. EGR cooler assembly
4. Variable Geometry Turbocharger
(VGT)
5. Lifting eye
6. Water supply housing (Freon®
compressor bracket)
7. Alte rnator bracket
8. EGR cooler supply tube
assembly
9. Crankcase
10. Second ary filtration filter (early
engines only)
11. Turbocharger control module
12. Coolant drain plug (underneath
location)
13. Oil cooler
14. Oil filter
15. Turbo oil inlet tube (supply)
EGES-270-1
