2KZ/2K0
1-4-1
1-4 Troubleshoo ting
1-4-1 Paper misfeed detection
(1) Paper misfeed indication
When a paper misfeed occurs, the machine immediately stops copying and displays the jam location on the
operation panel.
Paper misfeed counts sorted by component can be checked by maintenance item U903.
To remove the paper jammed in the machine, open the right cover and pull the cassette out.
To remove the original jammed in DP or the document finisher, open the top cover.
Paper misfeed can be reset by opening and closing the respective covers.

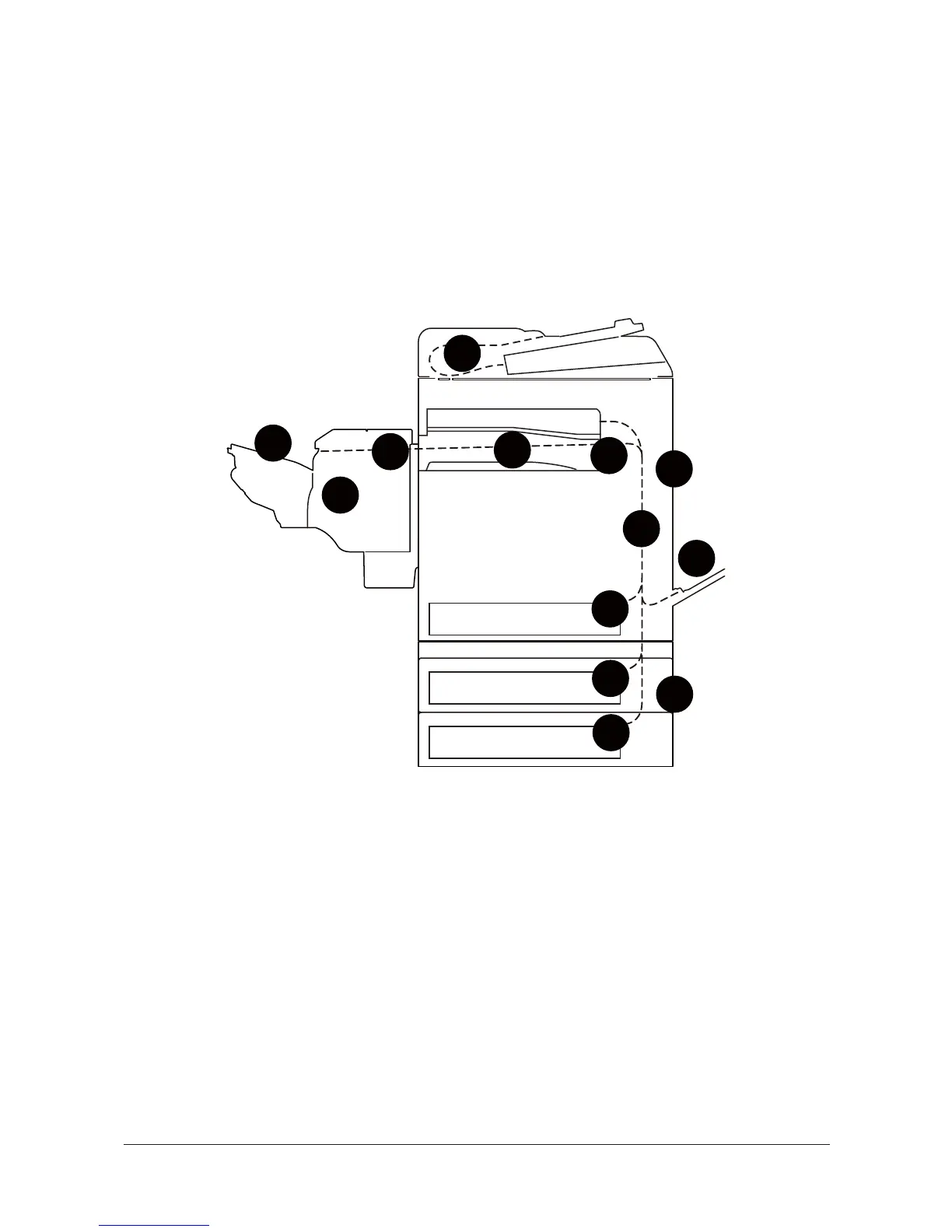

Figure 1-4-1
(A) Misfeed in the MP tray
(B) Misfeed in right cover 1
(C) Misfeed in cassette 1
(D) Misfeed in right cover 3
(E) Misfeed in cassette 2
(F) Misfeed in cassette 3
(G) Misfeed in the document finisher
(H) Stapler problem
(I) Misfeed in the bridge
(J) Misfeed in the document processor
J
A
B
B
B
C
D
E
F
G
G
H
I
Y113010-4 Sevice Manual
