2KZ/2K0
1-3-73
U403 Adjusting margins for scanning an original on the contact glass
Description
Adjusts margins for scanning the original on the contact glass.
Purpose
Perform the adjustment if margins are incorrect.
Adjustment
1. Press the start key.
2. Press the system menu key.
3. Place an original and press the start key to make a test copy.
4. Press the system menu key.
5. Select the item to be adjusted.
6. Change the setting value using the cursor left/right keys or numeric keys.
Increasing the value makes the margin wider, and decreasing it makes the margin narrower.

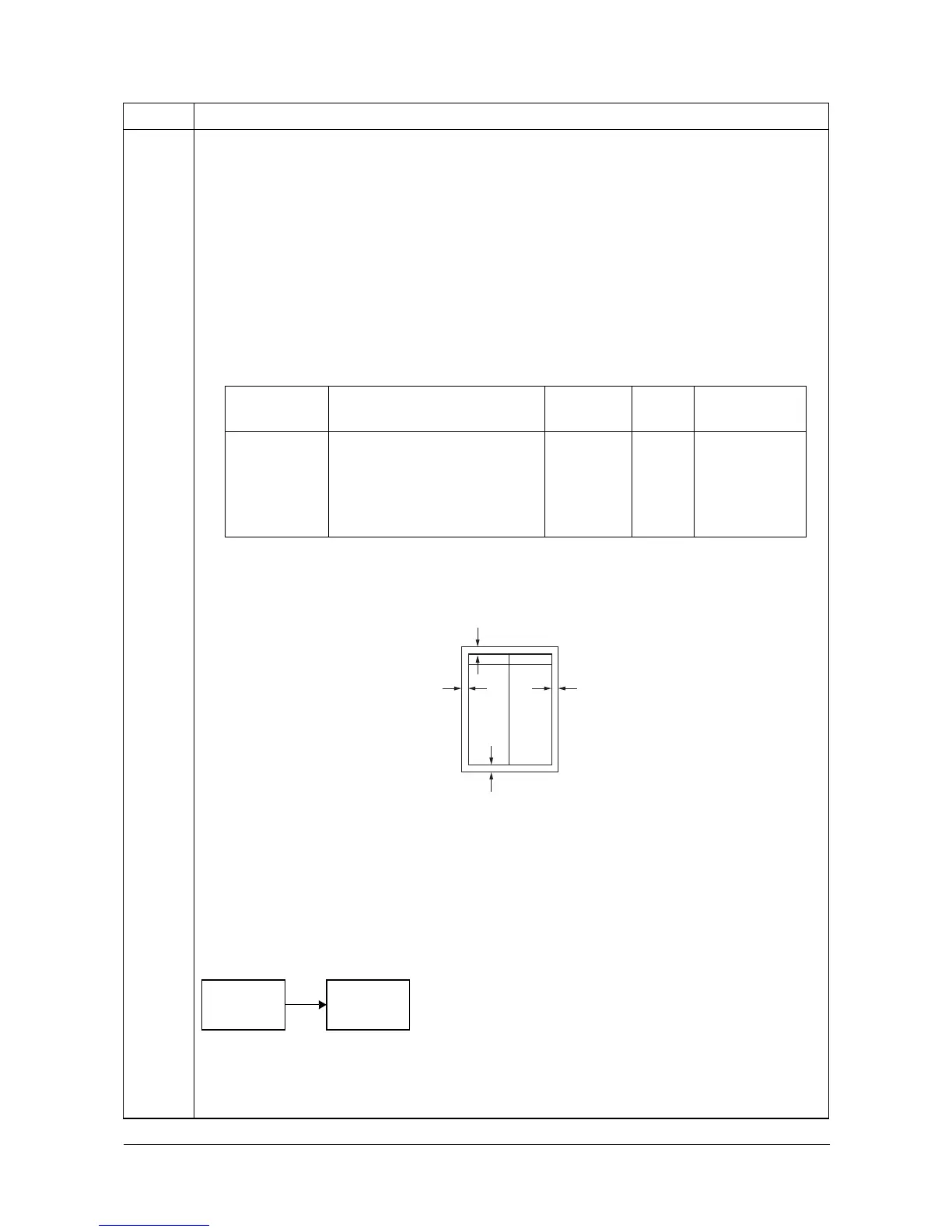

Figure 1-3-16
7. Press the start key. The value is set.
Caution
Check the copy image after the adjustment. If the image is still incorrect, perform the following
adjustments in maintenance mode.
Completion
Press the stop key. The indication for selecting a maintenance item No. appears.
Item No. Description
Display Description
Setting
range
Initial
setting
Change in
value per step
A Margin Scanner left margin 0 to 10.0 2.0 0.5 mm
B Margin Scanner leading edge margin 0 to 10.0 2.0 0.5 mm
C Margin Scanner right margin 0 to 10.0 2.0 0.5 mm
D Margin Scanner trailing edge margin 0 to 10.0 2.0 0.5 mm
Scanner leading edge margin
(3.0 ± 2.5 mm)
Scanner
left margin
(2.5 +1.5/-2.0 mm)
Scanner
right margin
(2.5 +1.5/-2.0 mm)
Scanner trailing edge margin
(3.0 ± 2.0 mm)
Y113010-4 Sevice Manual
To Next Page
