2KZ/2K0
2-1-15
(2) Secondary transfer roller section
The secondary transfer roller section consists of the secondary transfer roller mounted to the paper conveying
unit and the separation needle. To the secondary transfer roller, DC bias is applied from the high voltage PWB
(HVPWB). The toner image formed on the transfer belt is transferred to the paper by the potential difference.
Paper after transfer is separated from the drum by applying separation charging that is output from the high
voltage PWB (HVPWB) to the separation electrode.

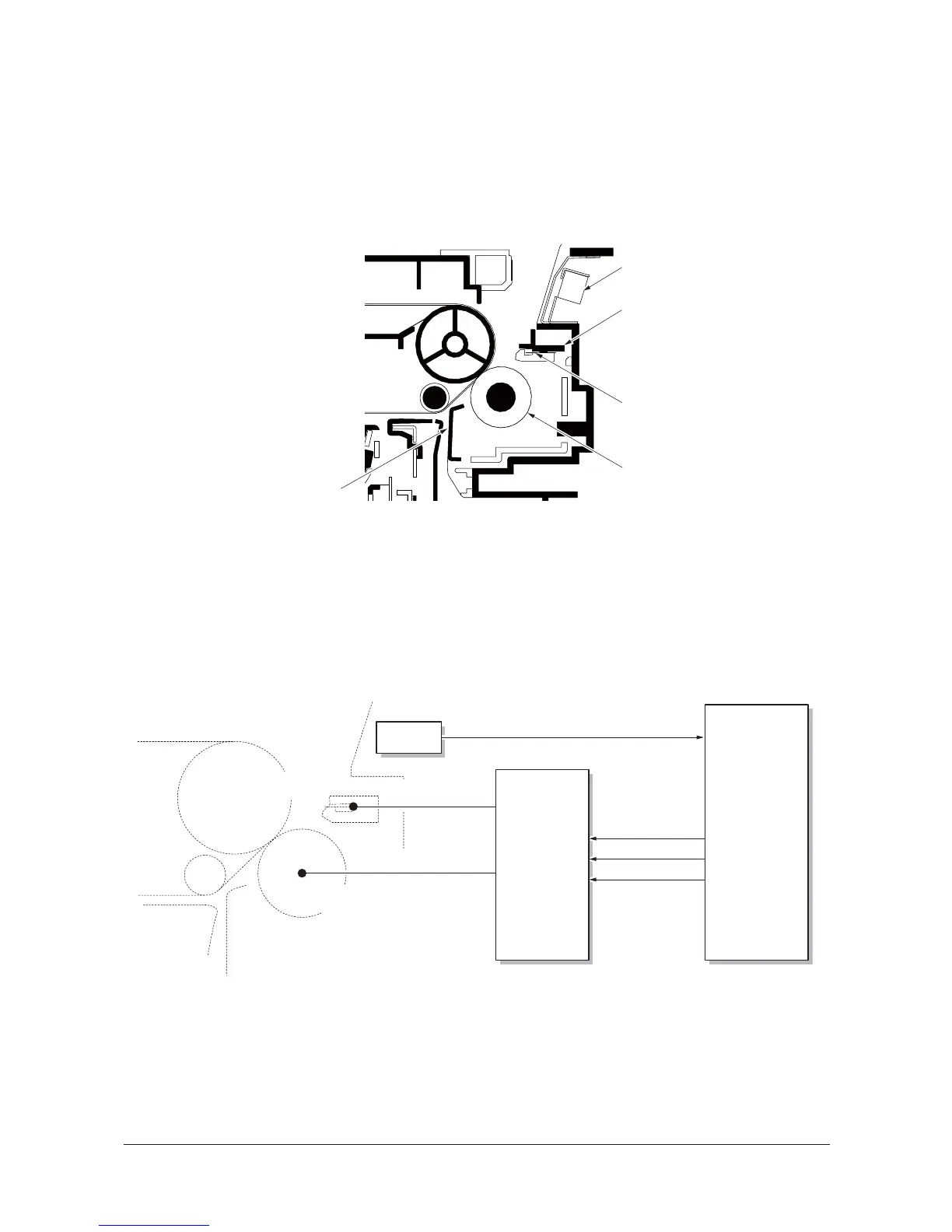

Figure 2-1-18 Secondary transfer roller section
Figure 2-1-19 Secondary transfer roller section block diagram
2
5
4
1
3
1. Secondary transfer roller
2. Separation needle holder
3. Paper chute guide
4. Separation needle
5. Fuser pre sensor
FUPS
HVPWB EPWB
YC15-B6
YC15-B4
YC15-B3
YC1-12
YC1-14
YC1-15
HVREM
YC5-5
ROOP
T2CNT
SCNT
Transfer bias
Separation bias
Transfer roller
Separation needle
Y113010-4 Sevice Manual
