U070 Adjusting the DP magnification
Description
Adjusts the DP original scanning speed.
Purpose
Perform this adjustment if the magnification is incorrect in the auxiliary scanning direction when
the DP is used.
Adjustment
1. Press the start key.
2. Press the system menu key.
3. Place an original on the DP and press the start key to make a test copy.
4. Press the system menu key.
5. Select the item to be adjusted.l
Adjustment: [Y Scan Zoom]
1. Change the setting value using the cursor left/right keys or numeric keys.
For copy example 1, increase the value. For copy example 2, decrease the value.

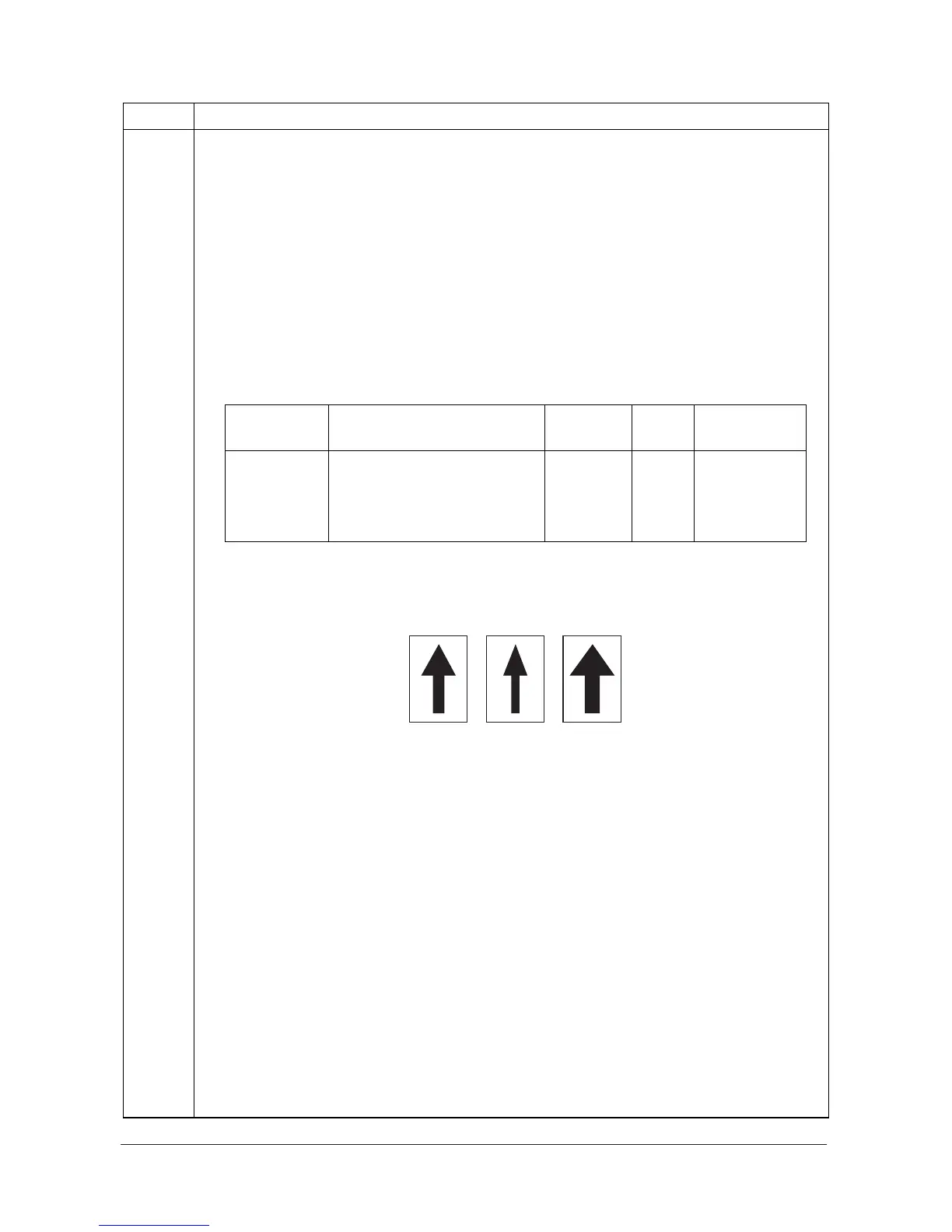

Figure 1-3-10
Item No. Description
Display Description
Setting
range
Initial
setting
Change in
value per step
Y Scan Zoom Magnification in the main scan-
ning direction
-125 to 125 0 0.02 %
X Scan Zoom Magnification in the auxiliary
scanning direction
-125 to 125 0 0.02 %
Original Copy
example 1
Copy
example 2
Service Manual Y113010-4
