Olivetti d-Color MF2001 - Detaching and Refitting the Eject Rear Cover

2KZ/2K0
1-5-8
(4) Detaching and refitting the eject rear cover
Procedure

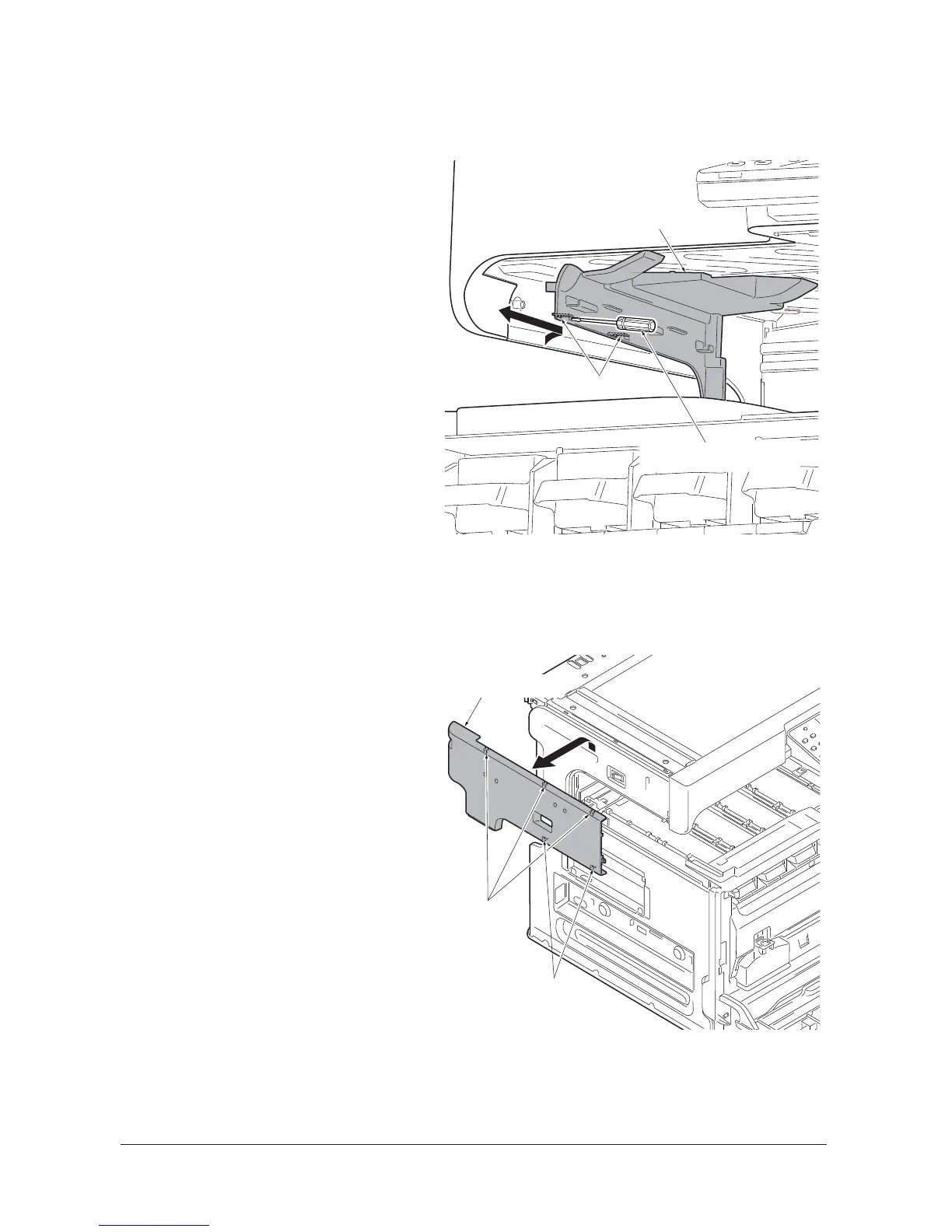

1. Release two hooks by using a flat
screwdriver and then remove the tray
left cover.
Figure 1-5-12
2. Pull the left upper cover downwards
and then release two hooks A.
3. Pull the left upper cover upwards and
then release three hooks B.
4. Remove the left upper cover.
ATTENTION: At the time of replace the
left upper cover, confirm the position of
the scaner lock lever .
Figure 1-5-13
Tray left cover
Hooks
Flat screwdriver
Left upper cover
Hooks B
Hooks A
Service Manual Y113010-4
