U065 Adjusting the scanner magnification
Description
Adjusts the magnification of the original scanning.
Purpose
Make the adjustment if the magnification in the main scanning direction is incorrect.
Make the adjustment if the magnification in the auxiliary scanning direction is incorrect.
Caution
Adjust the magnification of the scanner in the following order.
Method
1. Press the start key.
2. Press the system menu key.
3. Place an original and press the start key to make a test copy.
4. Press the system menu key.
5. Select the item to be adjusted.
Adjustment: [Y Scan Zoom]
1. Change the setting value using the cursor left/right keys or numeric keys.
For copy example 1, increase the value. For copy example 2, decrease the value.

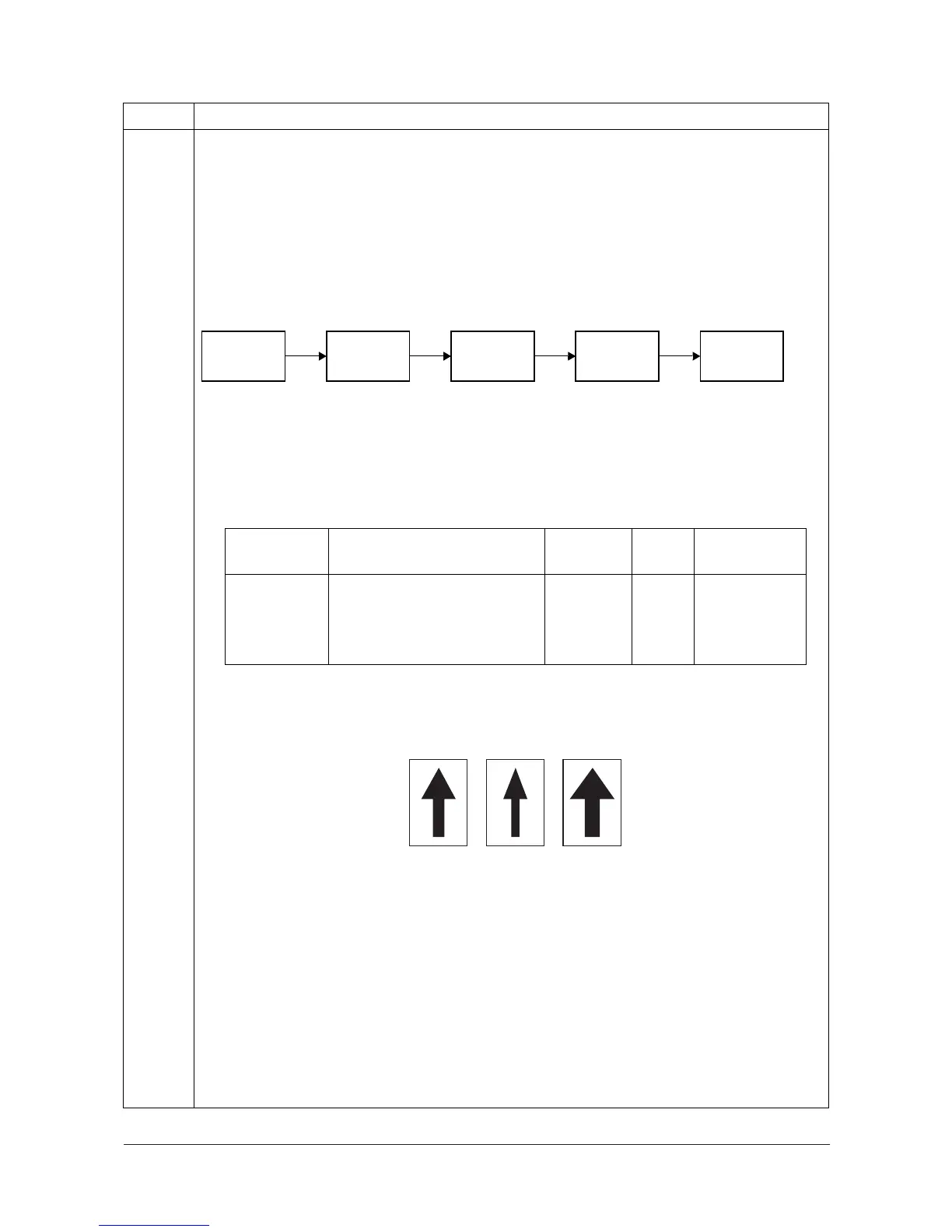

Figure 1-3-6
2. Press the start key. The value is set.
Item No. Description
U053
( P.1-3-26)
U065
main scan-
ning direction
U065
auxiliary scan-
ning direction
U067
( P.1-3-32)
U070
( P.1-3-35)
Display Description
Setting
range
Initial
setting
Change in
value per step
Y Scan Zoom Scanner magnification in the
main scanning direction
-75 to 75 0 0.02 %
X Scan Zoom Scanner magnification in the
auxiliary scanning direction
-125 to 125 0 0.02 %
Original Copy
example 1
Copy
example 2
Y113010-4 Sevice Manual
