2K3/2L3-1
1-2-14
1-2-3 Install the expansion memory (option)
Procedure
1. Turn off the main power switch.
Caution: Do not insert or remove
expansion memory while machine
power is on.
Doing so may cause damage to the
machine and the expansion memory.

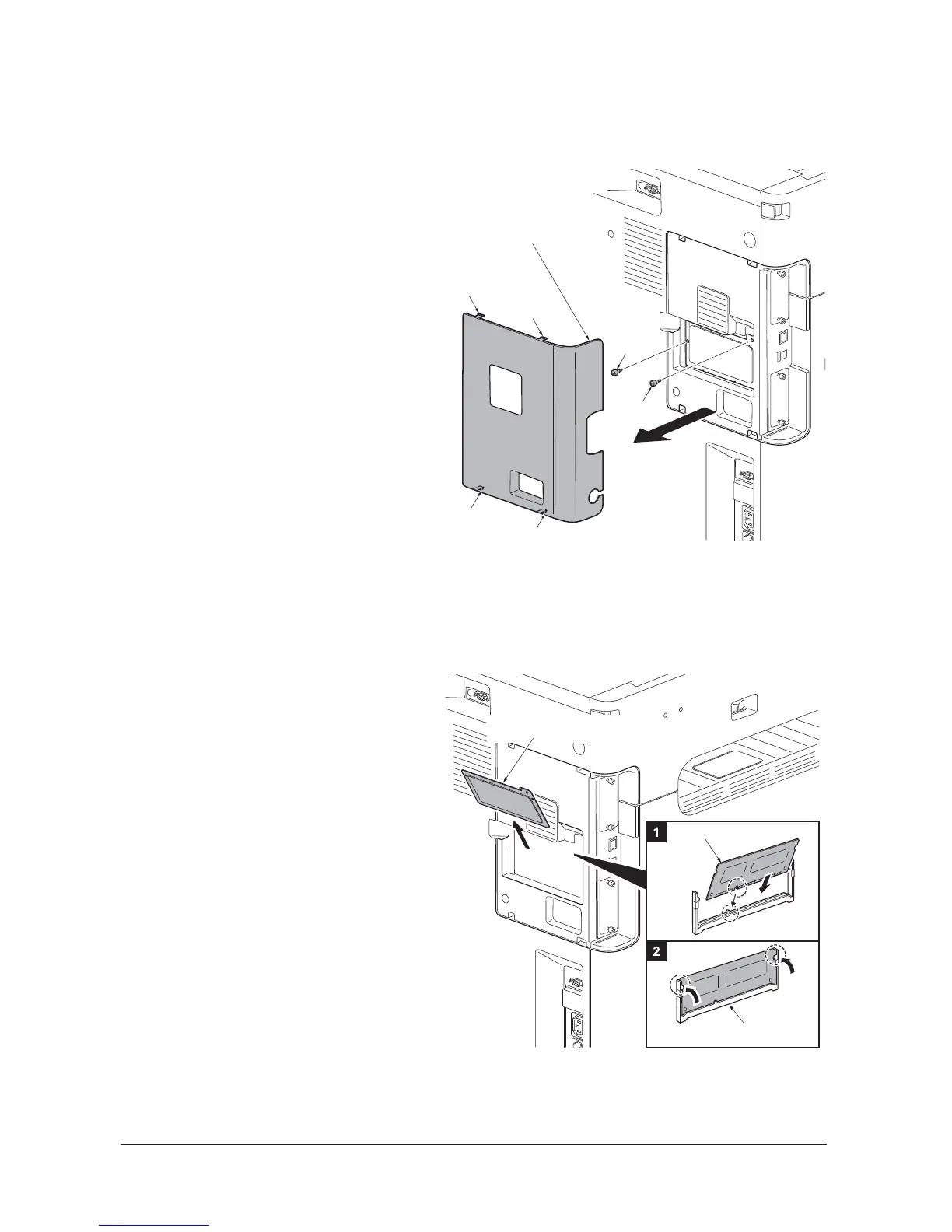

2. Release four hooks and then remove
the controller box cover.
3. Remove two screws.
Figure 1-2-20
4. Remove the memory slot cover.
5. Insert the expansion memory into the
memory socket so that the notches on
the memory align with the correspond-
ing protrusions in the slot.
6. Refit the memory slot cover.
7. Refit two screws.
8. Refit the controller box cover.
9. Print a status page to check the mem-
ory expansion.(See 1-3-98)
If memory expansion has been properly
performed, information on the installed
memory is printed with the total memory
capacity has been increased. Standard
memory capacity is 1024 MB.
Figure 1-2-21
Screw
Hook
Hook
Hook
Hook
Controller box cover
Screw
Expansion memory
Memory socket
Memory slot cover
Service Manual Y113010-4
