Olivetti d-Color MF2001 User Manual

2KZ/2K0
1-3-75
U407 Adjusting the leading edge registration for memory image printing
Description
Adjusts the leading edge registration during memory copying.
Purpose
Perform the following adjustment if there is a regular error between the leading edge of the copy
image on the front face and that on the reverse face during duplex switchback copying.
Caution
Before Performing this adjustment, ensure that the following adjustments have been made in
maintenance mode.
Adjustment
1. Press the start key.
2. Press the system menu key.
3. Place an original and press the start key to make a test copy.
4. Press the system menu key.
5. Select [Adj Data].
6. Change the setting value using the cursor left/right keys or numeric keys.
For copy example 1, decrease the value. For copy example 2, increase the value.

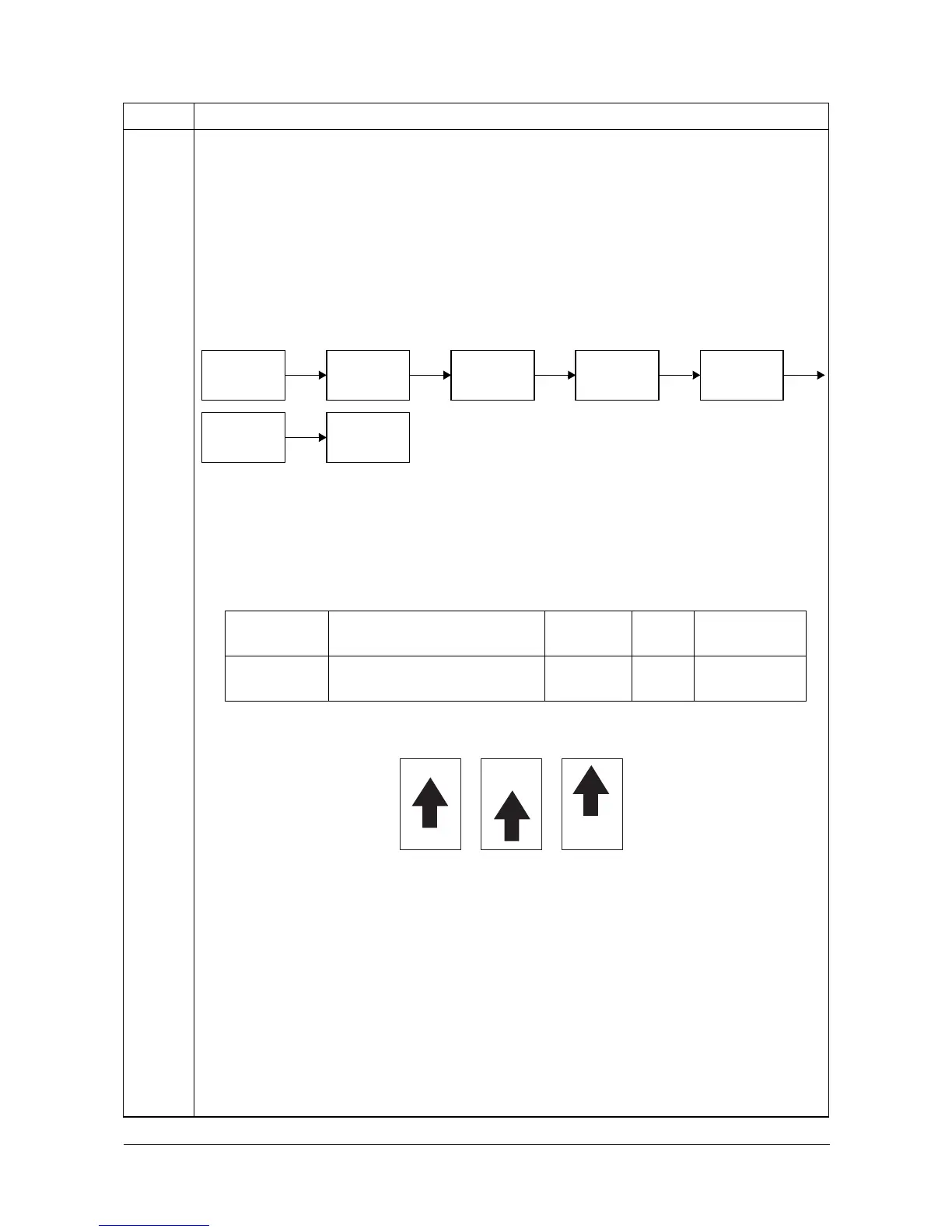

Figure 1-3-18
7. Press the start key. The value is set.
Completion
Press the stop key. The screen for selecting a maintenance item No. is displayed.
Item No. Description
U034
( P.1-3-21)
U402
( P.1-3-72)
U066
( P.1-3-31)
U403
( P.1-3-73)
U071
( P.1-3-36)
U404
( P.1-3-74)
U407
Display Description
Setting
range
Initial
setting
Change in
value per step
Adj Data Leading edge registration for
memory image printing
-47 to 47 0 0.1 mm
Original Copy
example 1
Copy
example 2
Y113010-4 Sevice Manual
