1-5-4 Developing section
(1) Detaching and refitting the developing unit
Procedure

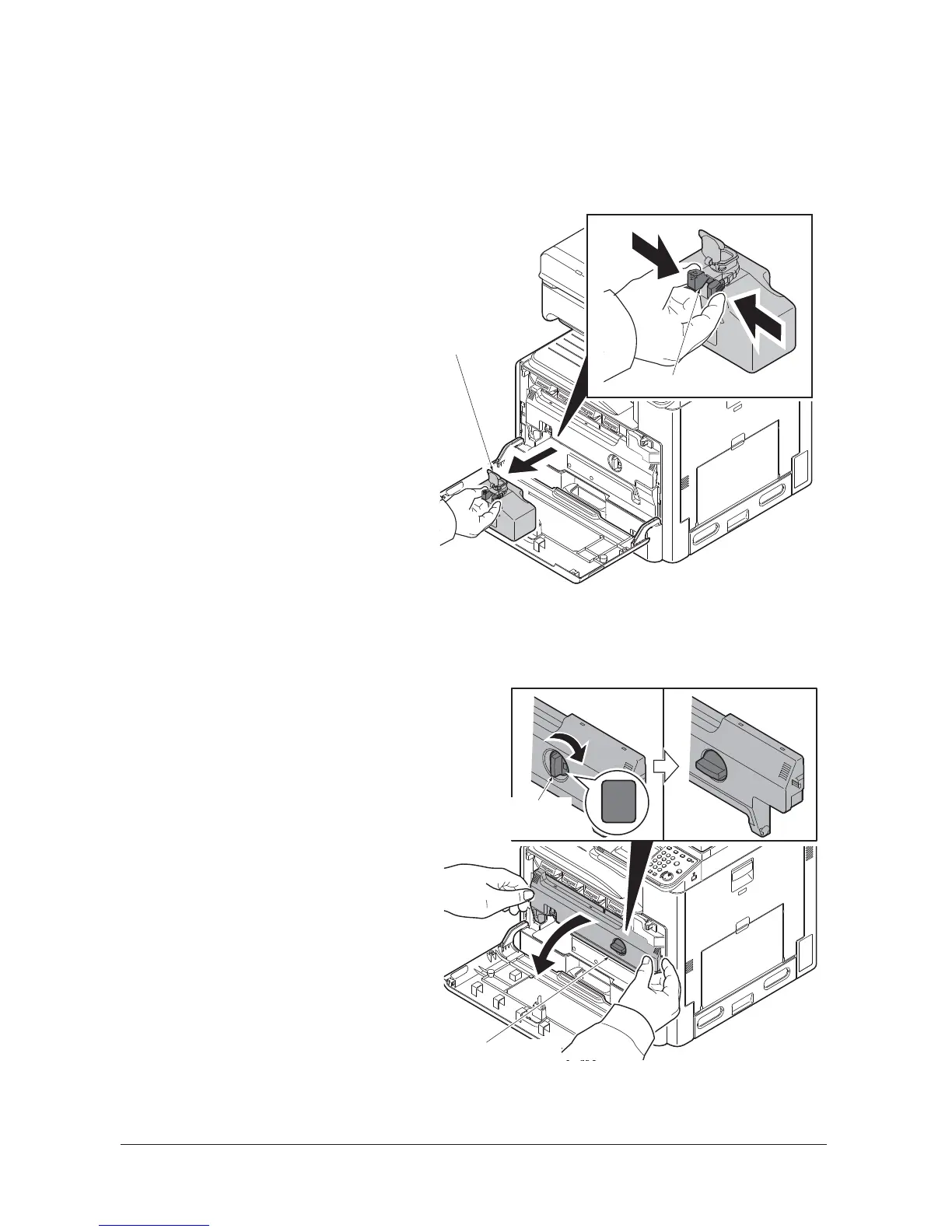

1. Open the front cover. (See page 1-5-3)
2. Release the lock lever and then remove
the waste toner box.
Figure 1-5-23
3. Turn the lock lever (yellow) to the right
and then knock down the duct cover
forwards.
Figure 1-5-24
Lock lever
Waste
toner box
d
Duct cover
Lock lever
(yellow)
