4. Lift the lever and turn the duct holder
upwards.

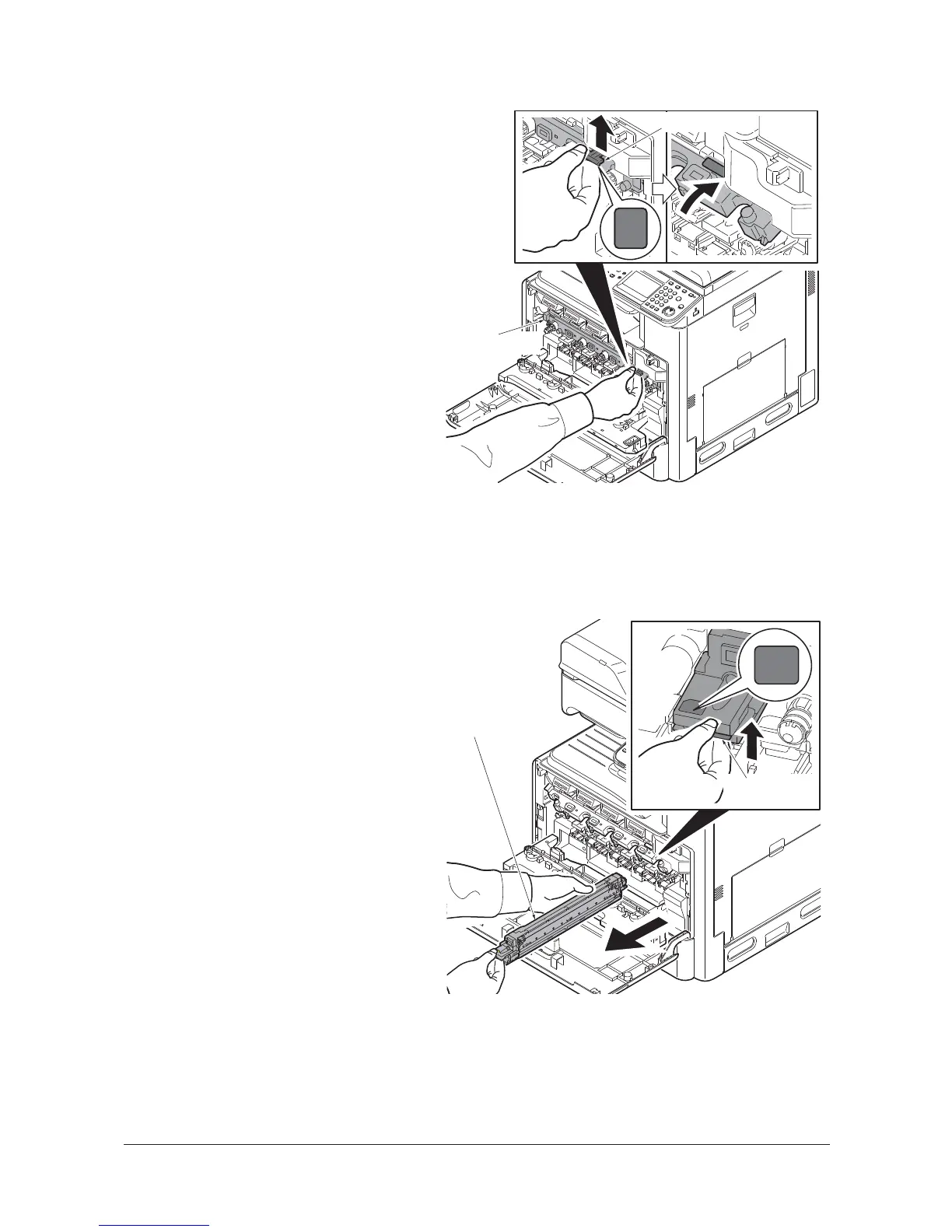

Figure 1-5-25
5. Push the lock lever (yellow) of the
development unit upwards and then
remove the developer unit.
6. Check or replace the developer unit and
refit all the removed parts.
Figure 1-5-26
Duct holder
e
Lever (yellow)
g
Lock lever
(yellow)
Developer unit
Y113010-4 Sevice Manual
