1-5-3 Paper feed section
(1) Detaching and refitting the primary paper feed unit
Procedure
1. Remove the cassette.

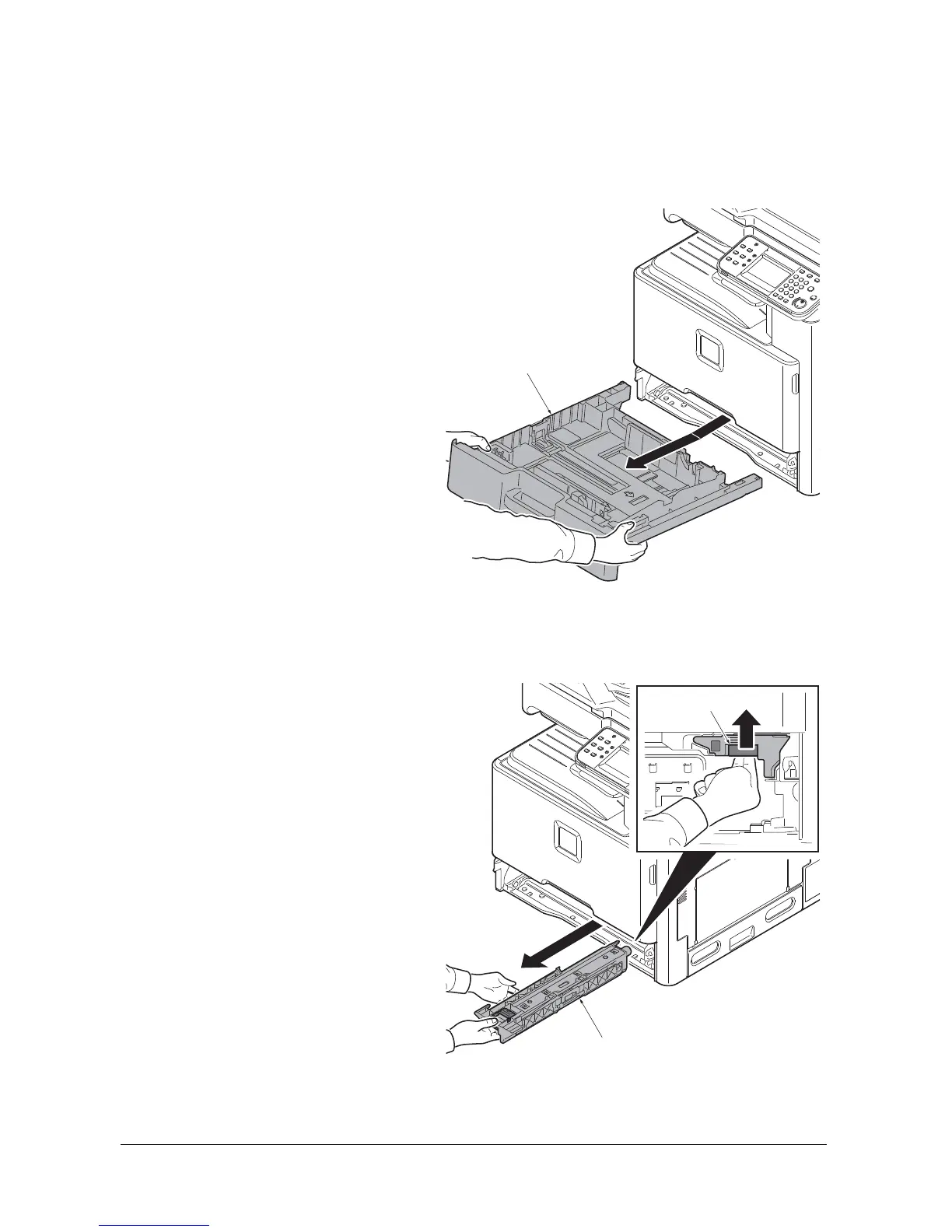

Figure 1-5-15
2. Release the feed lever (yellow) and
then remove the primary paper feed
unit.
3. Check or replace the primary paper
feed unit and refit all the removed parts.
Figure 1-5-16
Cassette
p
Primary paper feed unit
Feed lever (yellow)
Service Manual Y113010-4
