(2) Detaching and refitting the conveying unit
Procedure
1. Remove the MP tray.(See page 1-5-13)
2. Remove the right cover 1.
(See page 1-5-11)

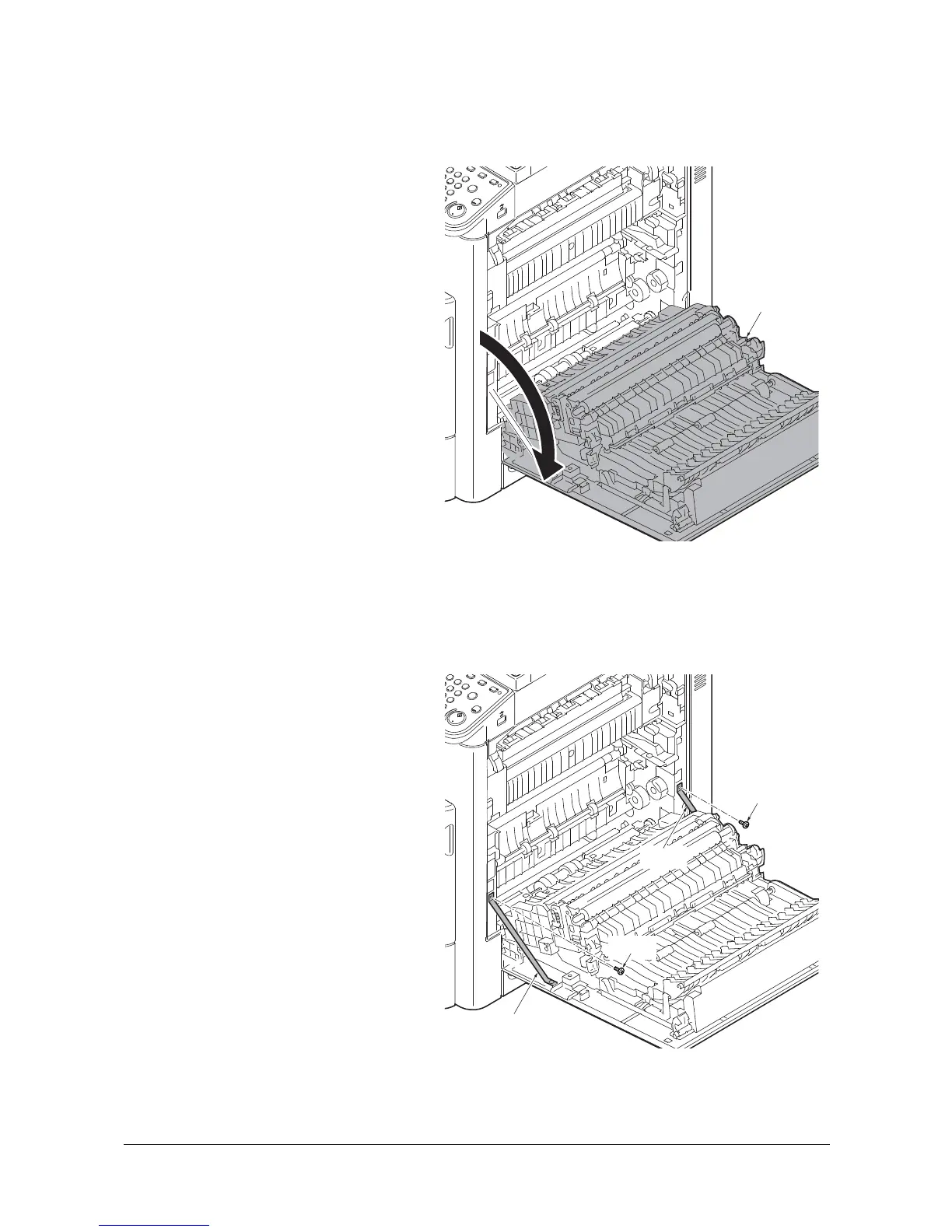

Figure 1-5-66
3. Remove two screws and then remove
two straps.
Figure 1-5-67
Right cover 1
Screw
Screw
Strap
Strap
