2KZ/2K0
2-1-26
(3) Original switchback/eject sections
The original switchback/eject sections consists of the parts shown in figure. An original of which scanning is
complete is ejected to the original eject table by the eject roller. In the case of duplex switchback scanning, an
original is conveyed temporarily to the switchback tray and conveyed again to the original conveying section
by the switchback roller.

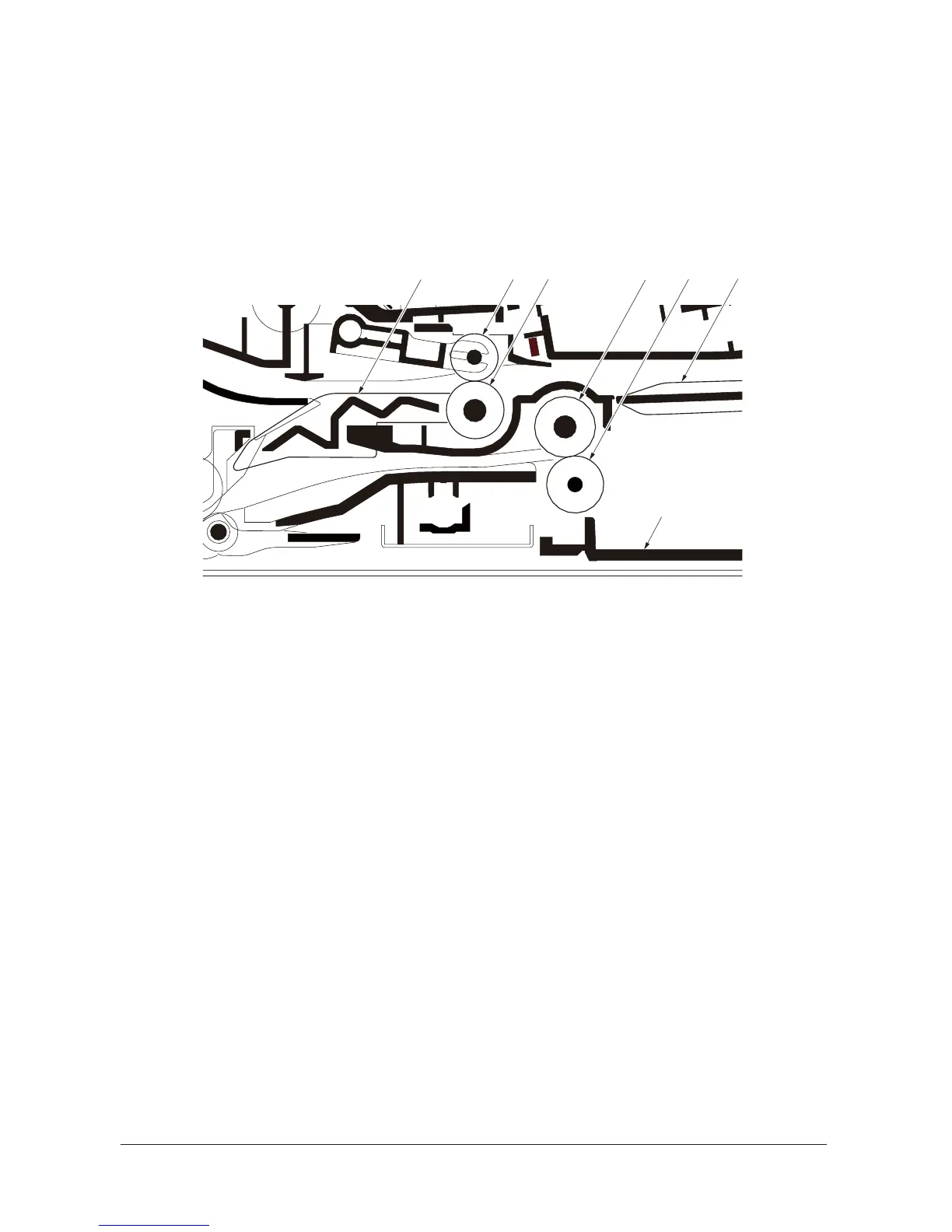

Figure 2-1-30 Original switchback/eject sections
5
4
2
3
1
6
7
1. Feedshift guide
2. Eject roller
3. Eject pulley
4. Switchback roller
5. Switchback pulley
6. Original eject table
7. Switchback tray
Service Manual Y113010-4
