Olivetti d-Color MF2001 - Detaching and Refitting the Rear Cover

2KZ/2K0
1-5-5

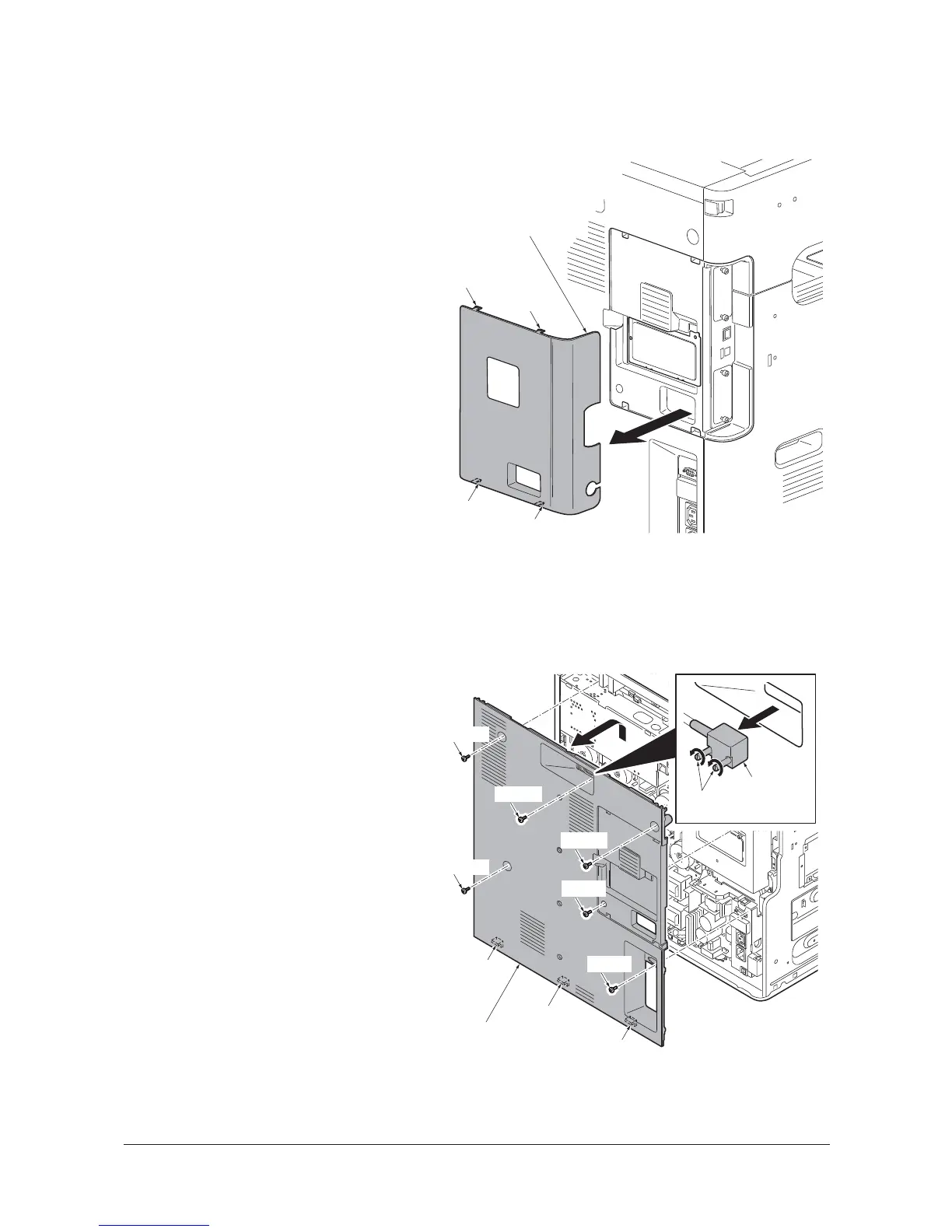

(2) Detaching and refitting the rear cover
Procedure
1. Remove the power cord.
If the document feeder is installed,
remove its interface connector.
2. Release four hooks and then remove
the controller box cover.
Figure 1-5-6
3. Remove two screws of the DP interface
connector and then remove the DP
interface connector.
(See page 1-5-25)
4. Remove six screws.
5. Pull the rear cover upwards and then
release three hooks.
6. Remove the rear cover.
Figure 1-5-7
Hook
Hook
Hook
Hook
Controller box cover
Screw
Screw
Screw
Screw
Screw
Rear cover
Hook
Hook
Hook
DP interface
connector
Screws
Screw
Y113010-4 Sevice Manual
