1-5-7 Fuser section

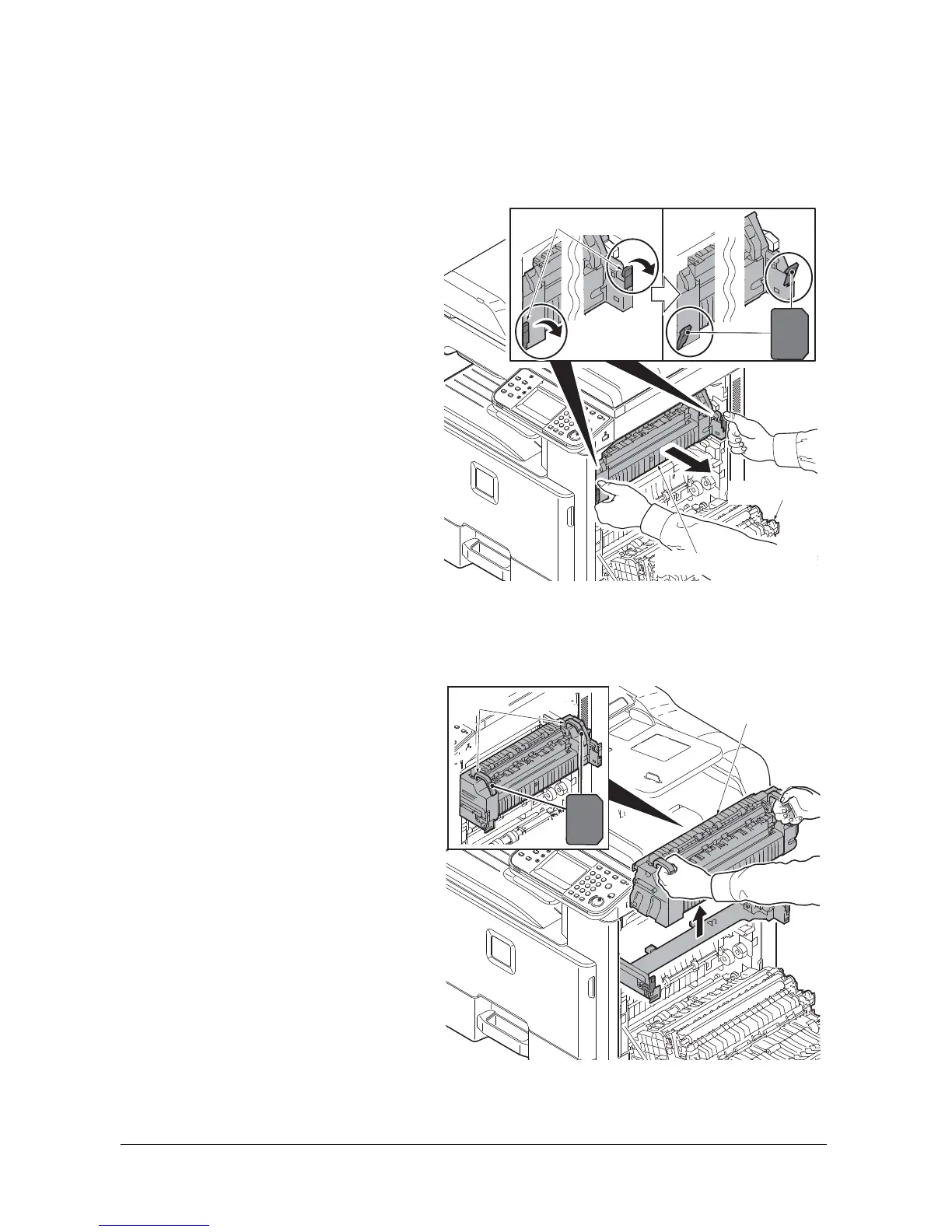

(1) Detaching and refitting the fuser unit
Procedure
1. Open the right cover 1.
(See page 1-5-11)
2. Release two mount levers (yellow) and
then pull the fuser unit forwards
Figure 1-5-31
3. Grip two knobs (yellow) of the fuser
unit.
4. Lift the fuser unit upwards and then
remove the fuser unit.
5. Check or replace the fuser unit and refit
all the removed parts.
Figure 1-5-32
h-2
Fuser unit
Mount lever (yellow)
Right cover 1
h-1
Fuser unit
Knobs
