2KZ/2K0
1-3-25
U051 Adjusting the deflection in the paper
Description
Adjusts the deflection in the paper at the registration roller.
Purpose
Make the adjustment if the leading edge of the copy image is missing or varies randomly, or if the
copy paper is Z-folded.
Adjustment
1. Press the start key.
2. Press the system menu key.
3. Place an original and press the start key to make a test copy.
4. Press the system menu key.
5. Select the item to be adjusted.
6. Change the setting value using the cursor left/right keys or numeric keys.
For output example 1, increase the value. For output example 2, decrease the value.
The greater the value, the larger the deflection; the smaller the value, the smaller the deflec-
tion.

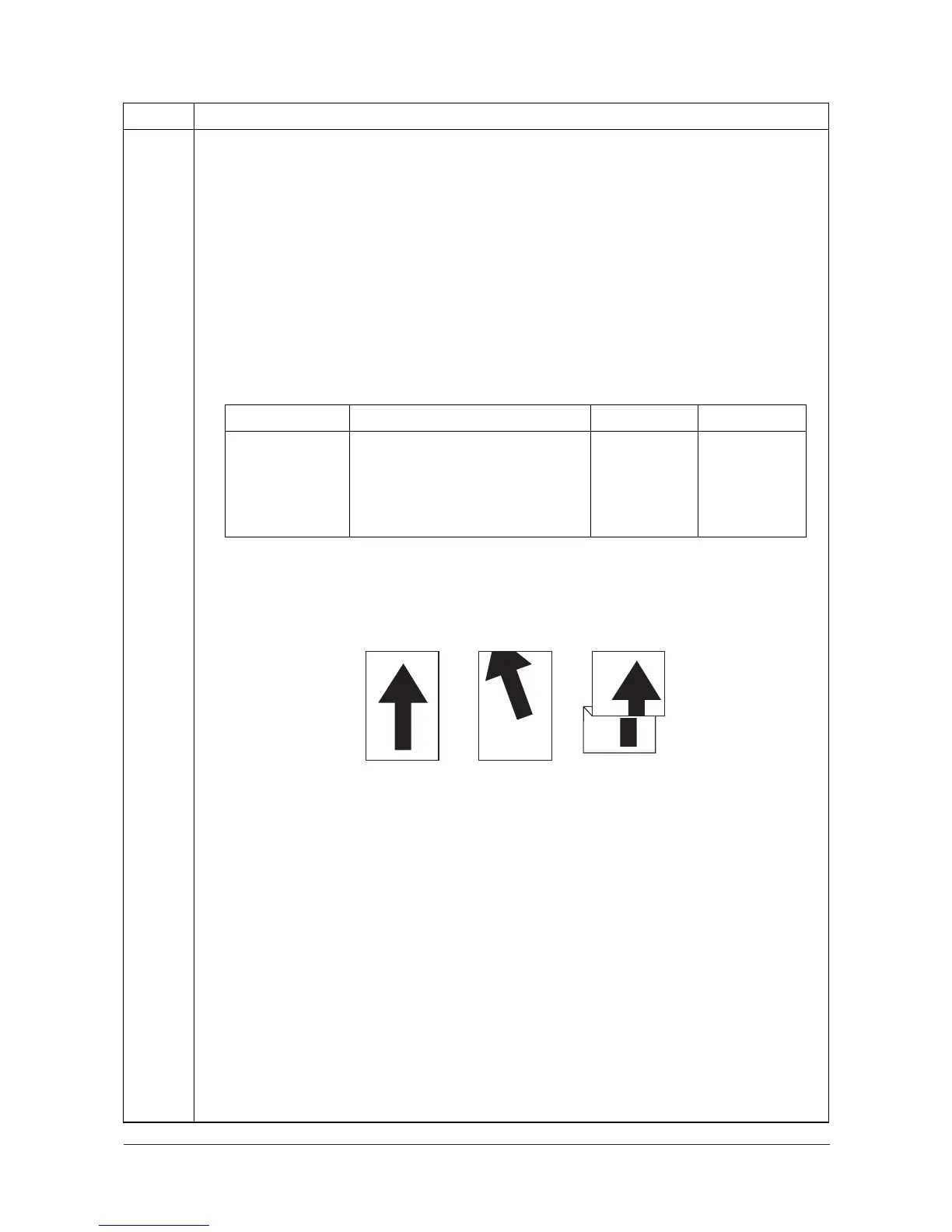

Figure 1-3-4
7. Press the start key. The value is set.
Completion
Press the stop key. The indication for selecting a maintenance item No. appears.
Item No. Description
Display Description Setting range Initial setting
MPT Paper feed from MP tray -30 to 20 0
Cassette Paper feed from cassette 1 -30 to 20 0
PF Paper feed from paper feeder -30 to 20 0
Duplex Duplex mode (second) -30 to 20 0
Original Copy
example 1
Copy
example 2
Y113010-4 Sevice Manual
To Next Page
