Olivetti d-Color MF2001 - Direction of Installing the Principal Fan Motors; Detaching and Refitting the Imaging Fan Motor

2KZ/2K0
1-5-39

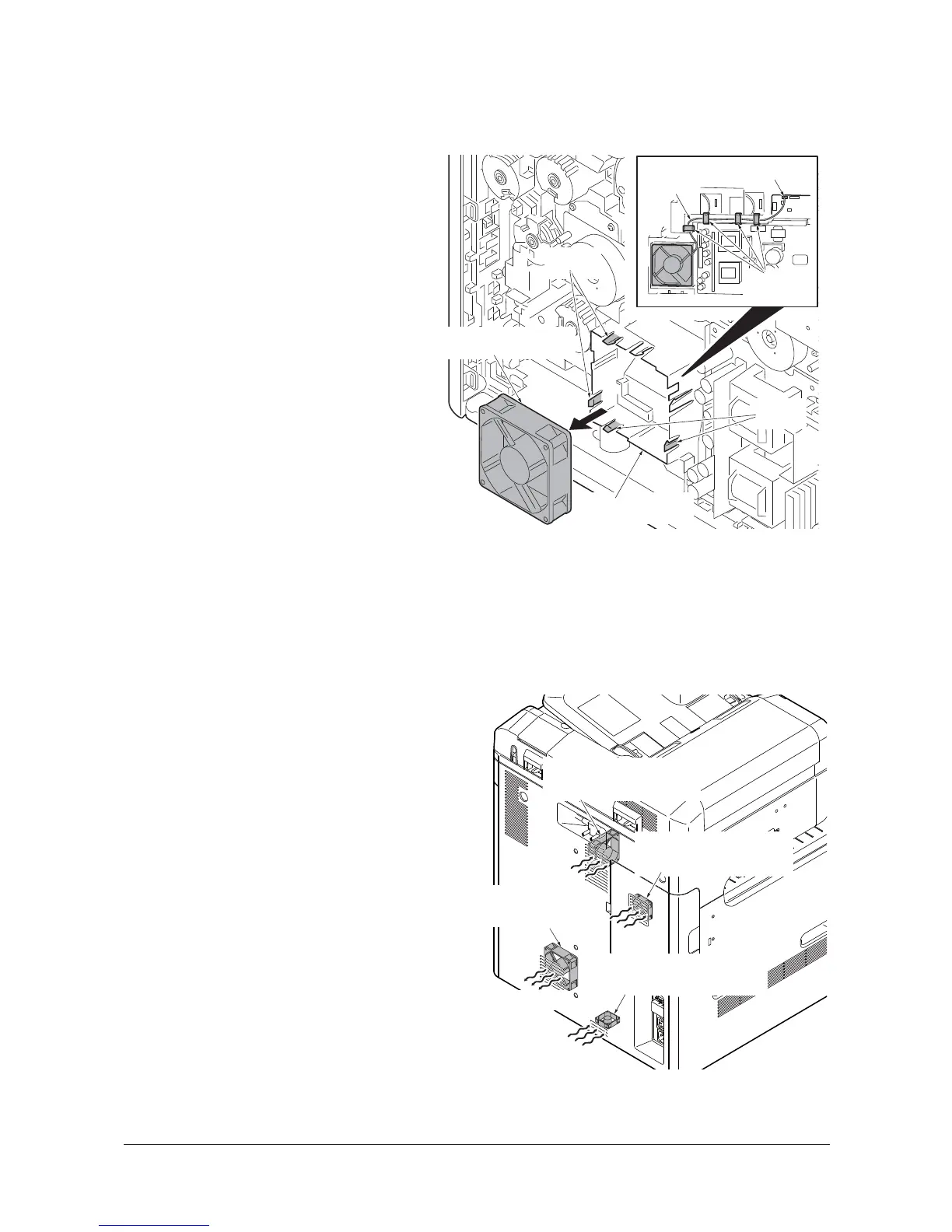

(3) Detaching and refitting the imaging fan motor
Procedure
1. Remove the rear cover.
(See page 1-5-5)
2. Remove four clamps and then remove
the wires and the connector.
3. Unhook four hooks and then remove
the imaging fan motor.
Figure 1-5-69
(4) Direction of installing the principal fan motors
When detaching or refitting the fan moter,be careful of the airflow direction (intake or exhaust).
Figure 1-5-70
Hooks
Wire
Clamps
Connector
Cooling fan duct
Hooks
Imaging fan motor
Controller fan motor
(Rating label: box side)
Exhaust
Intake
Intake
IH fan motor
(Rating label: box side)
Imaging fan motor
(Rating label: outside)
Power source fan motor
(Rating label: upper side)
Intake
Y113010-4 Sevice Manual
