2KZ/2K0
1-5-35

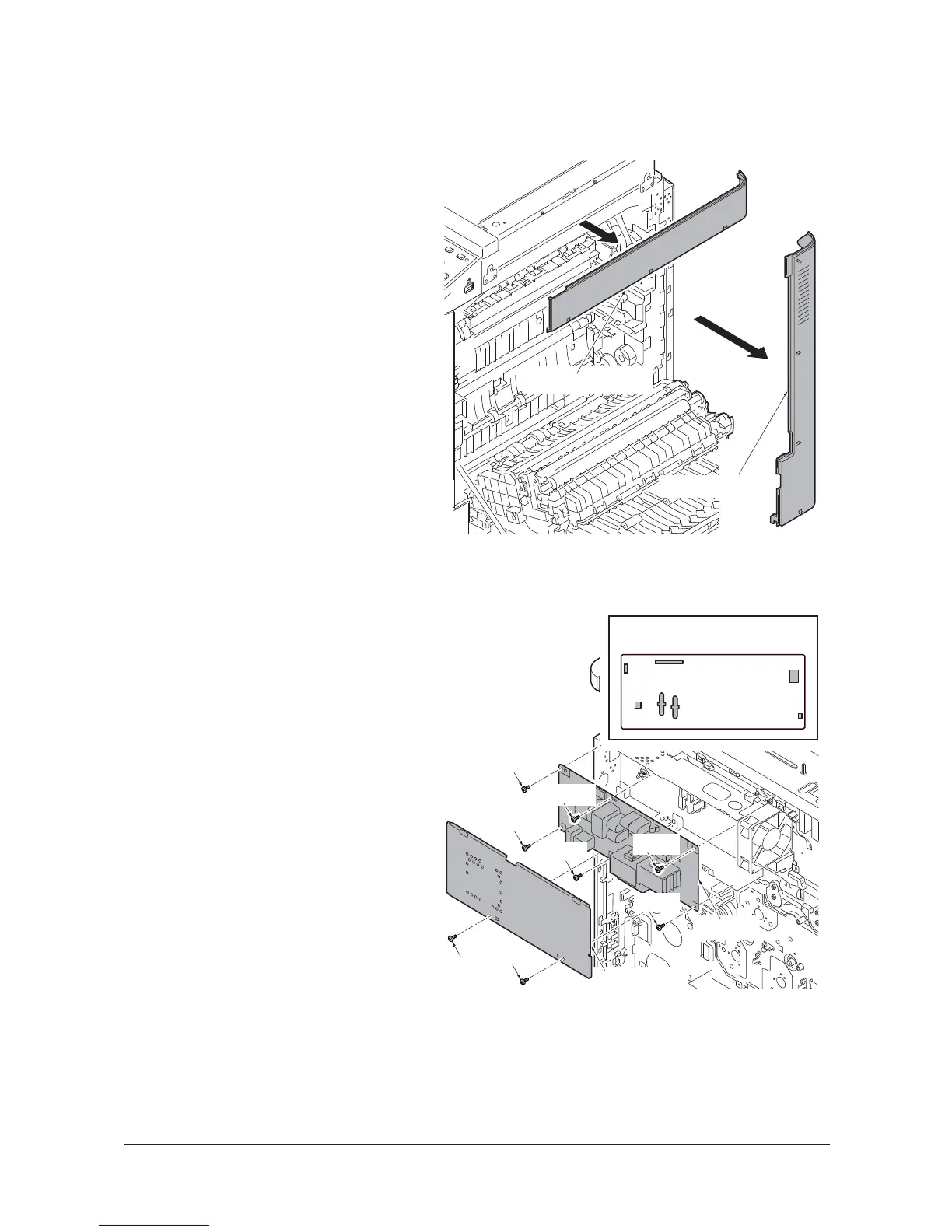

(5) Detaching and refitting the IH PWB
Procedure
1. Remove the scanner right cover.
(See page 1-5-5)
2. Remove the right upper cover.
3. Remove the right rear cover.
Figure 1-5-63
4. Remove two screws and then remove
the IH box cover.
5. Remove all connectors from the IH
PWB.
6. Remove six screws and then remove
the IH PWB.
7. Check or replace the IH PWB and refit
all the removed parts.
Figure 1-5-64
Right rear cover
Right upper cover
Screw
Screw
Screw
Screw
Screw
Screw
Screw
Screw
IH box cover
IH PWB
IH PWB connectors
Y113010-4 Sevice Manual
