1-1-2 Parts names
(1) Machine (front side)

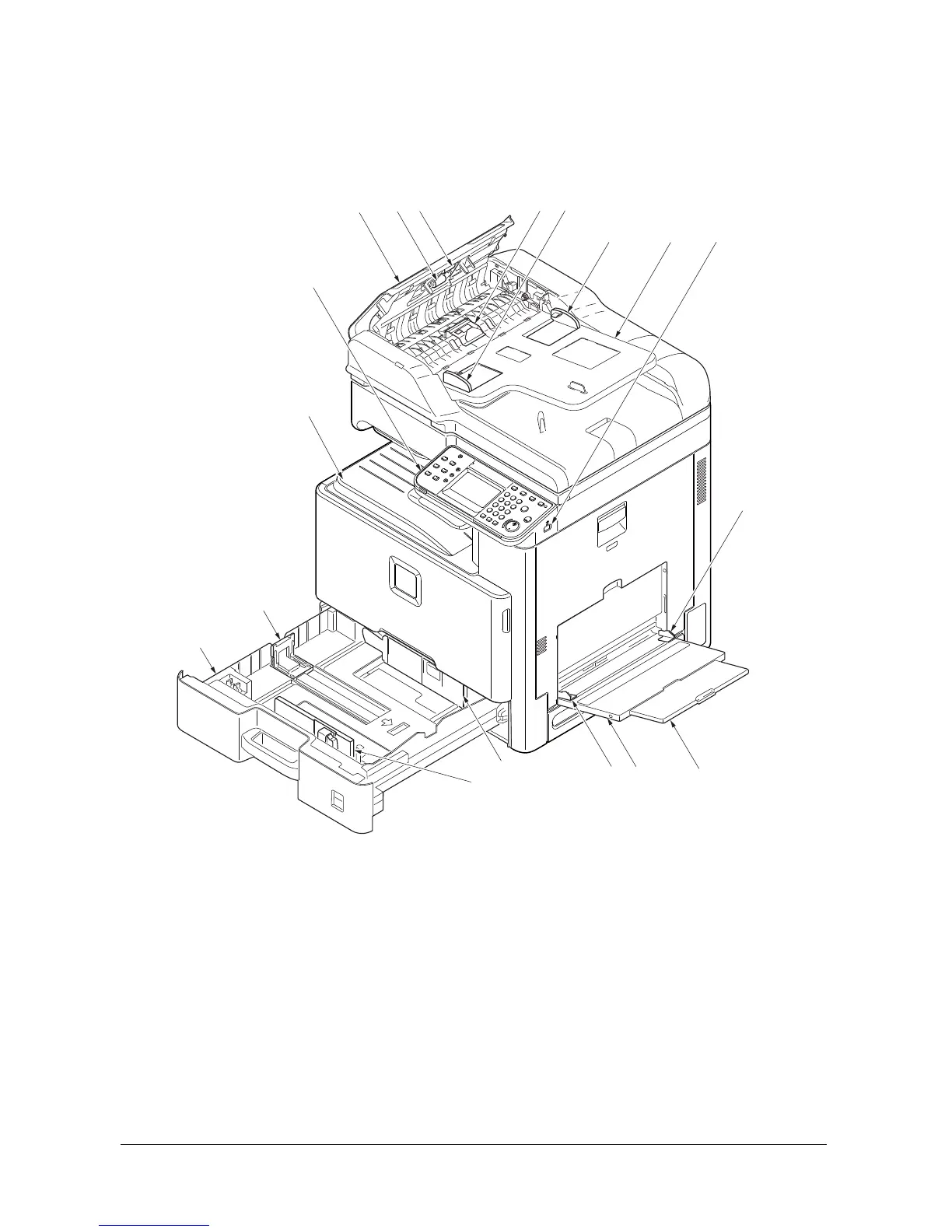

Figure 1-1-1
7
1
3
2
2
8
11
13
12
10
13
14
4
5
9
6
6
15
1. Cassette
2. Paper width guides
3. Paper length guide
4. MP (multi purpose) tray
5. MP tray extension
6. MP Paper width guides
7. Inner tray
8. Operation panel
9. DP top cover
10. DP paper feed roller
11. DP forwarding roller
12. DP separation pully
13. DP original width guides
14. Original table
15. USB memory slot
