2KZ/2K0

1-5-28

(3) Detaching and refitting the DP main PWB

Procedure

1. Open the document processor.

2. Release three hooks of the DP rear

cover.

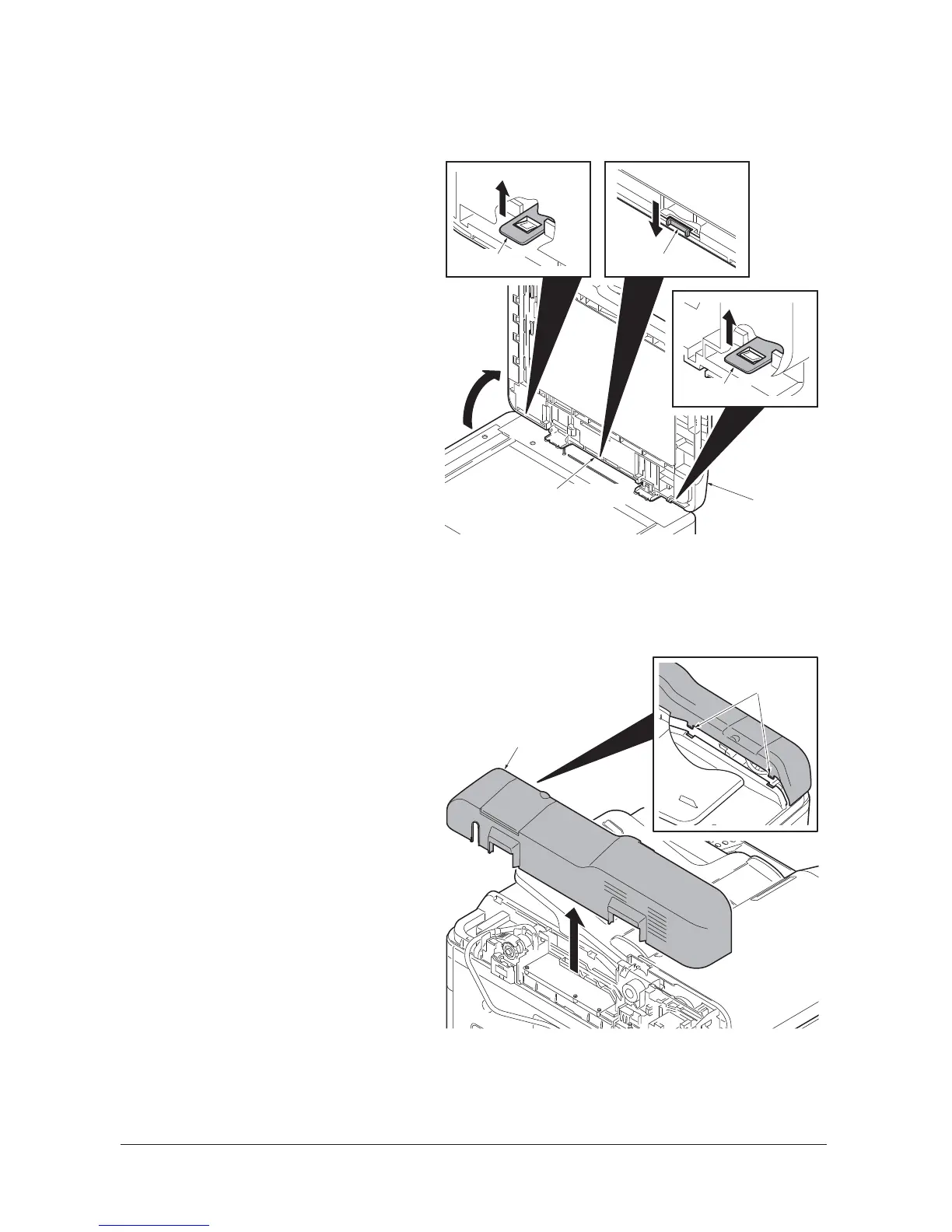

Figure 1-5-51

3. Release two hooks of the DP rear cover

and then remove it.

Figure 1-5-52

Document processor

Hook

DP rear cover

Hooks

Service Manual Y113010-4
