2KZ/2K0
2-1-24
(2) Original conveying section
The original conveying section consists of the parts shown in figure. A conveyed original is scanned by the
optical section (CCD) on the main machine when it passes through the slit glass of main machine.

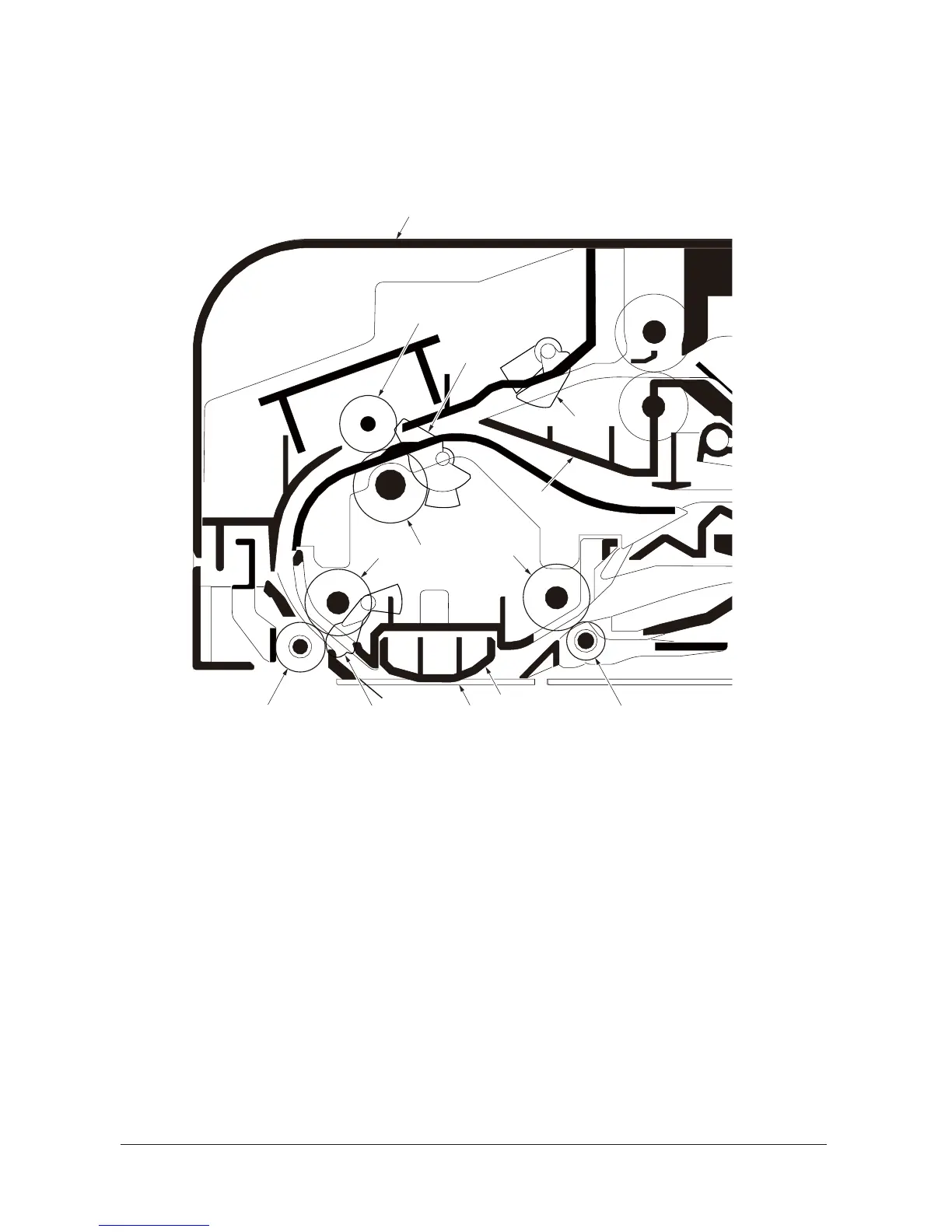

Figure 2-1-28 Original conveying section
3
5
7
4
2
6
9
1
8
11
10
13
12
1. DP top cover
2. DP registration roller
3. DP registration pulley
4. Conveying roller
5. Conveying pulley
6. Eject roller
7. Eject pulley
8. Actuator (DP paper feed sensor)
9. Actuator (DP registration sensor)
10. Actuator (DP timing sensor)
11. Switchback guide
12. Reading guide
13. Slit glass
Service Manual Y113010-4
