(3) Conveying section
The conveying section conveys paper to the transfer/separation section as paper feeding from the cassette or
MP tray, or as paper refeeding for duplex printing. Paper by feeding is conveyed by the paper feed roller to the
position where the registration sensor (RS) is turned on, and then sent to the transfer/separation section by
the right registration roller and left registration roller.

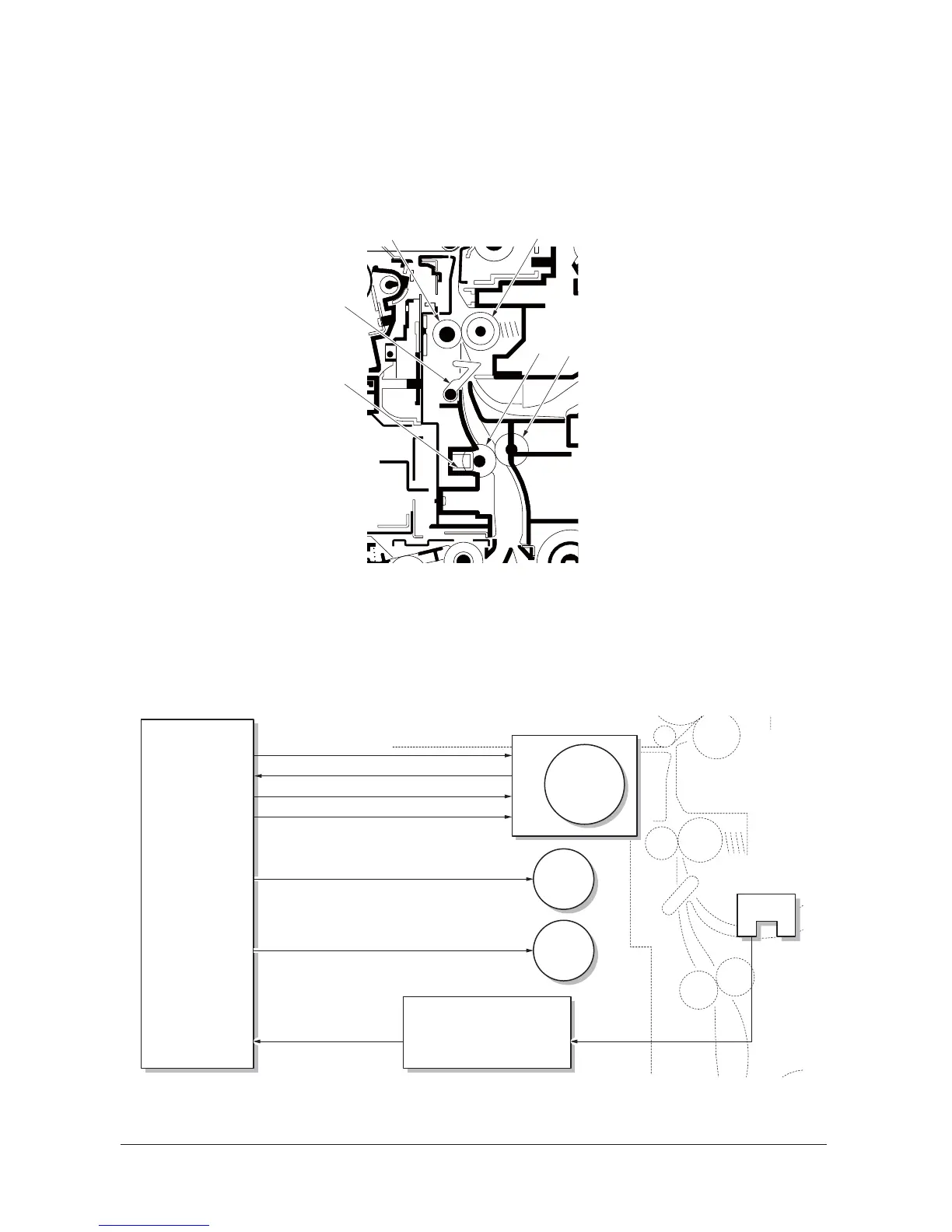

Figure 2-1-5 Conveying section
Figure 2-1-6 Paper conveying section block diagram
1. Left registration roller
2. Right registration roller
3. Left feed roller
4. Right feed roller
5. Actuator (registration sensor)
6. Registration cleaner
ECPWB
EPWB
RS
RCL
REG_CL_REM
YC2-5
MCL
MID_CL_REM
YC2-7
FEED_MT_CW
YC2-11
RESIST
YC12-3YC1-51
RESIST
YC9-10
FEED_MT_LDY
YC2-12
FEED_MT_CLK
FEED_MT_REM
YC2-13
YC2-14
5
6
4
3
CM
Service Manual Y113010-4
