Olivetti d-Color MF2001 - Remove the Tapes and Spacer

To Next Page

To Previous Page

2KZ/2K0

1-2-4

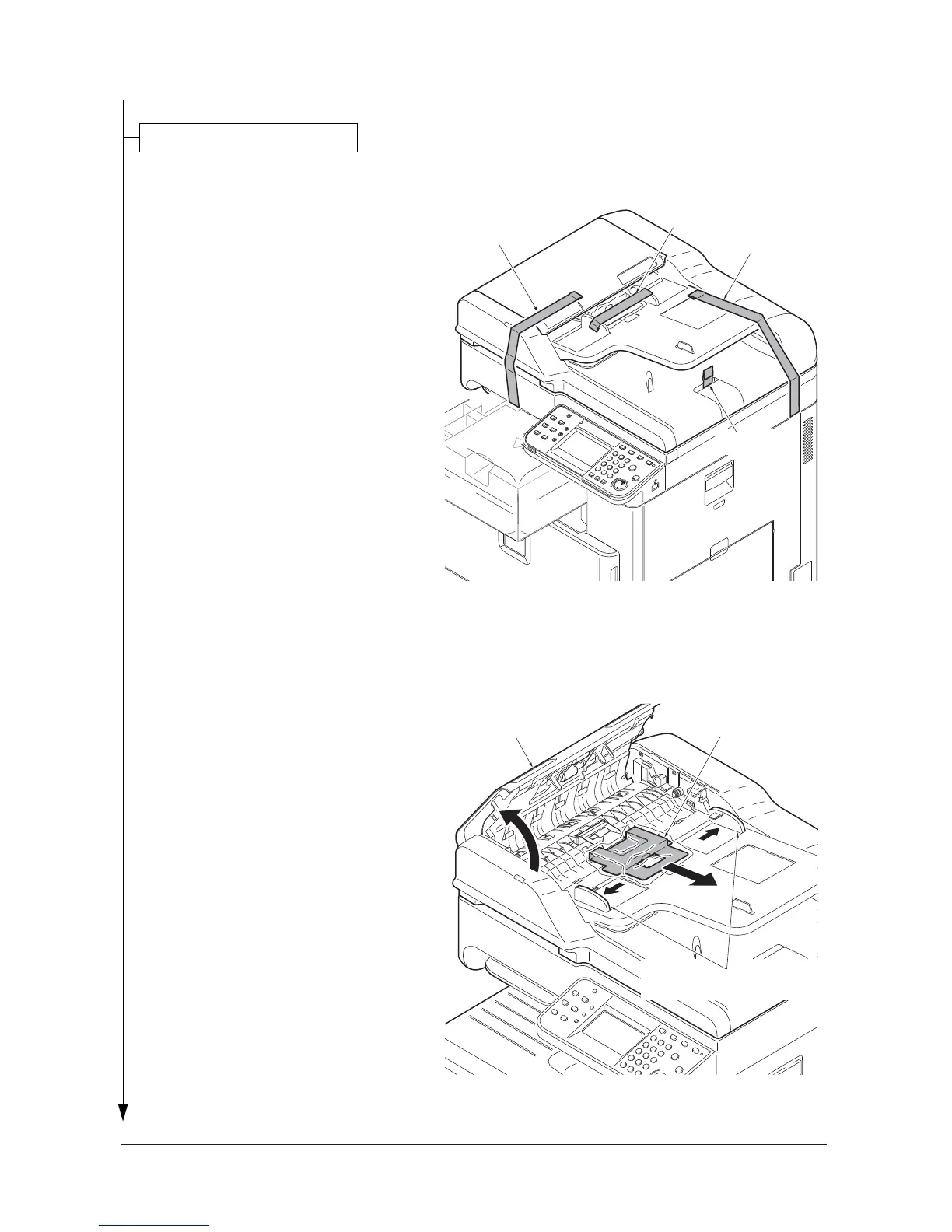

1. Remove four tapes.

Figure 1-2-3

2. Open the DP top cover.

3. Slide two DP original width guides and

then remove the pad.

4. Close the DP top cover.

Figure 1-2-4

Remove the tapes and spacer

Tape

DP top cover

Pad

DP original width guides

Service Manual Y113010-4
