Olivetti d-Color MF2001 - 1-5-5 Drum Section

2KZ/2K0
1-5-16
1-5-5 Drum section

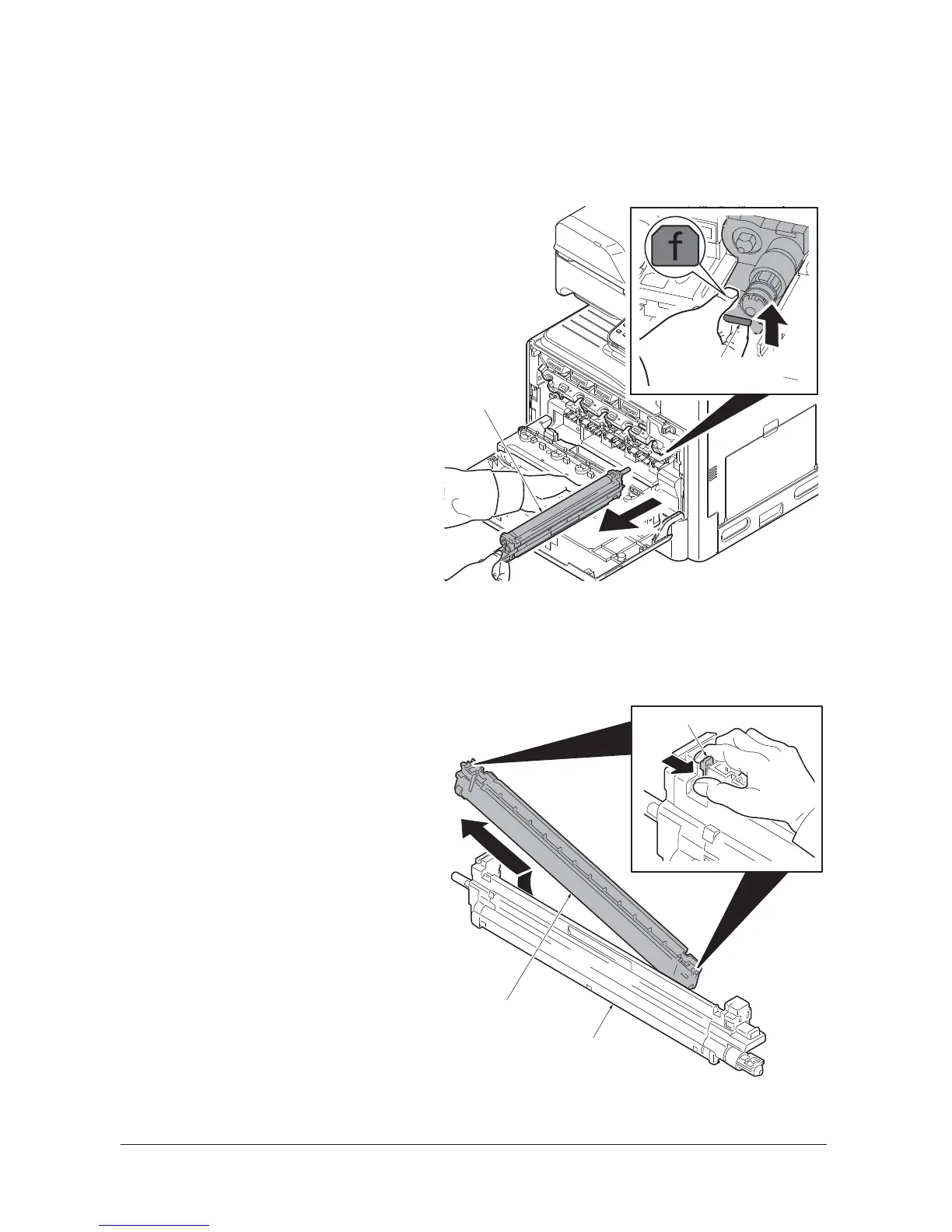

(1) Detaching and refitting the drum unit
Procedure
1. Open the front cover. (See page 1-5-3)
2. Release the waste toner box.
(See page 1-5-14)
3. Turn the lock lever to the right and then
knock down the duct cover forwards.
(See page 1-5-15)
4. Lift the lever and turn the duct holder
upwards.(See page1-5-11 )
5. Push the lock lever (yellow) of the drum
unit upwards and then remove the drum
unit.
6. Check or replace the drum unit and refit
all the removed parts.
Figure 1-5-27
(2) Detaching and refitting the chager roller unit
Procedure
1. Remove the drum unit.
(See page 1-5-16)
2. Release two lock levers and then
remove the chager roller unit.
3. Check or replace the chager roller unit
and refit all the removed parts.
Figure 1-5-28
f
g
Lock lever
(yellow)
Drum unit
Drum unit
Chager roller unit
Lock lever
