2KZ/2K0

1-5-33

(4) Detaching and refitting the operation panel PWB main

Procedure

1. Remove the language sheets.

(See page 1-5-36)

2. Remove two screws.

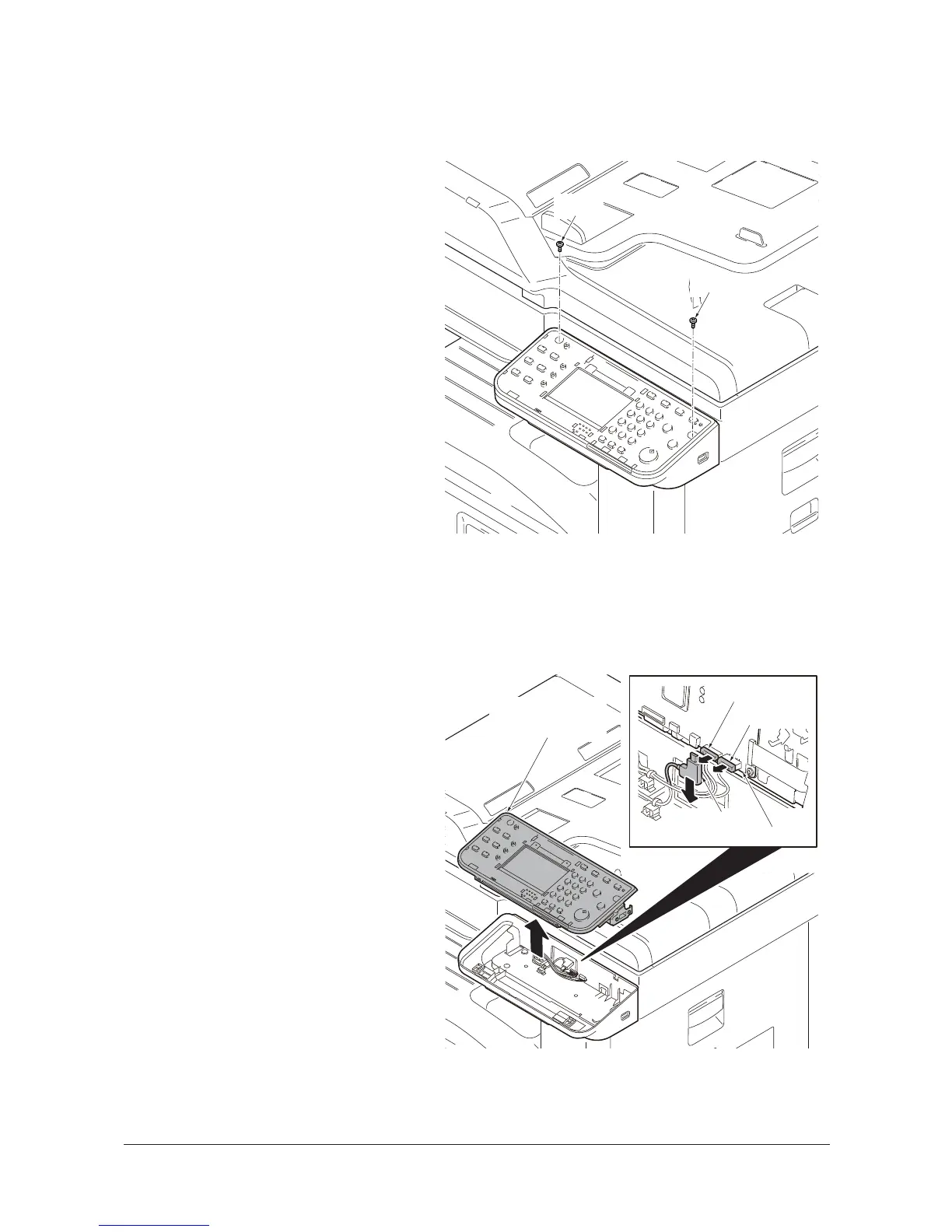

Figure 1-5-60

3. Remove three connectors from the

operation panel PWB main.

4. Remove the operation panel upper unit.

Figure 1-5-61

Screw

Connector

Operation panel PWB

Operation panel

upper unit
