2KZ/2K0

1-5-11

(2) Detaching and refitting the MP paper feed roller and MP separation pad

Procedure

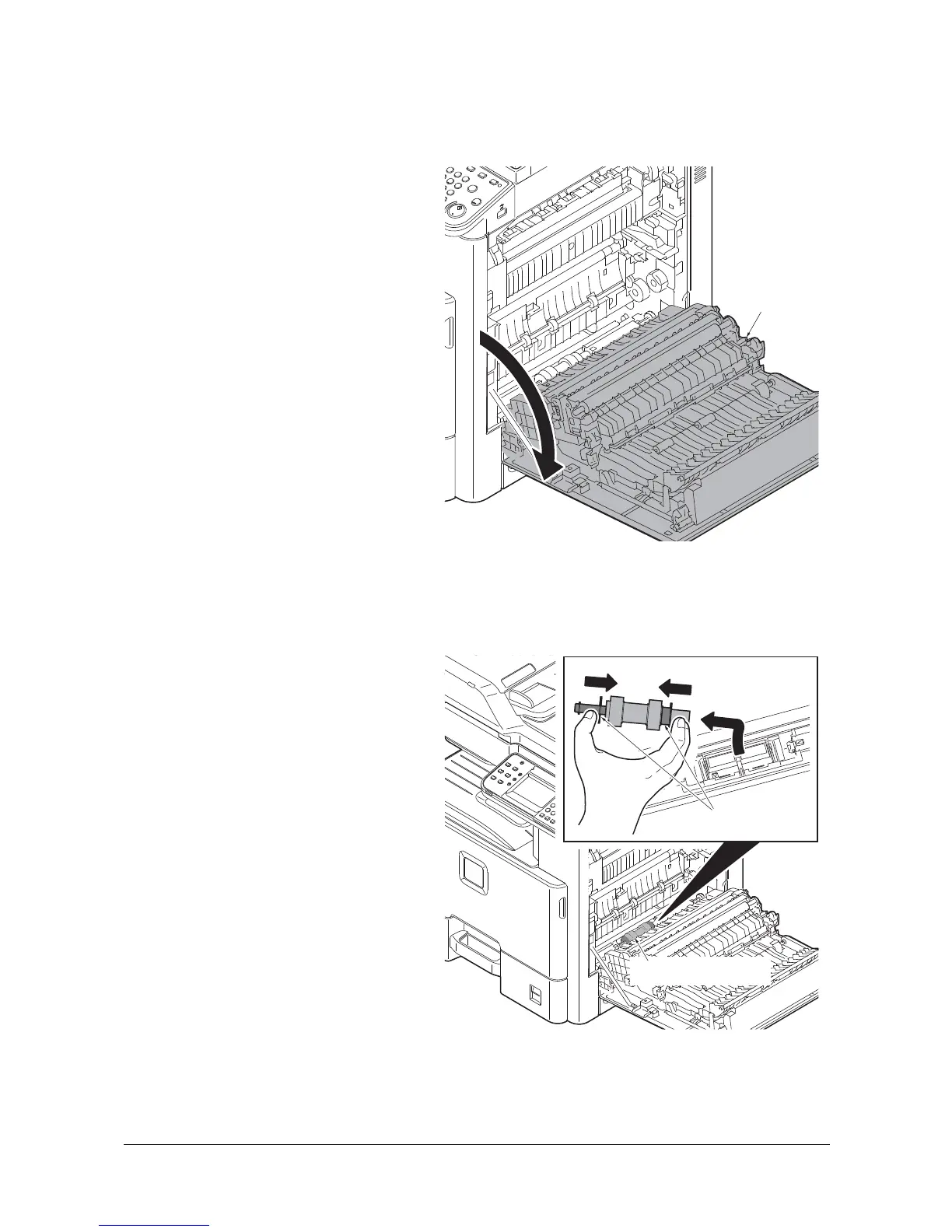

1. Open the right cover 1.

Figure 1-5-17

2. While squeezing the holder inward,

remove the MP paper feed roller.

Figure 1-5-18

Right cover 1

MP paper feed roller

Holder (yellow)

Y113010-4 Sevice Manual
