Olivetti d-Color MF2001 - 1-5-2 Outer Covers

2KZ/2K0
1-5-3
1-5-2 Outer covers
(1) Detaching and refitting the front cover
Procedure
1. Remove the cassette.
(See page 1-5-10)

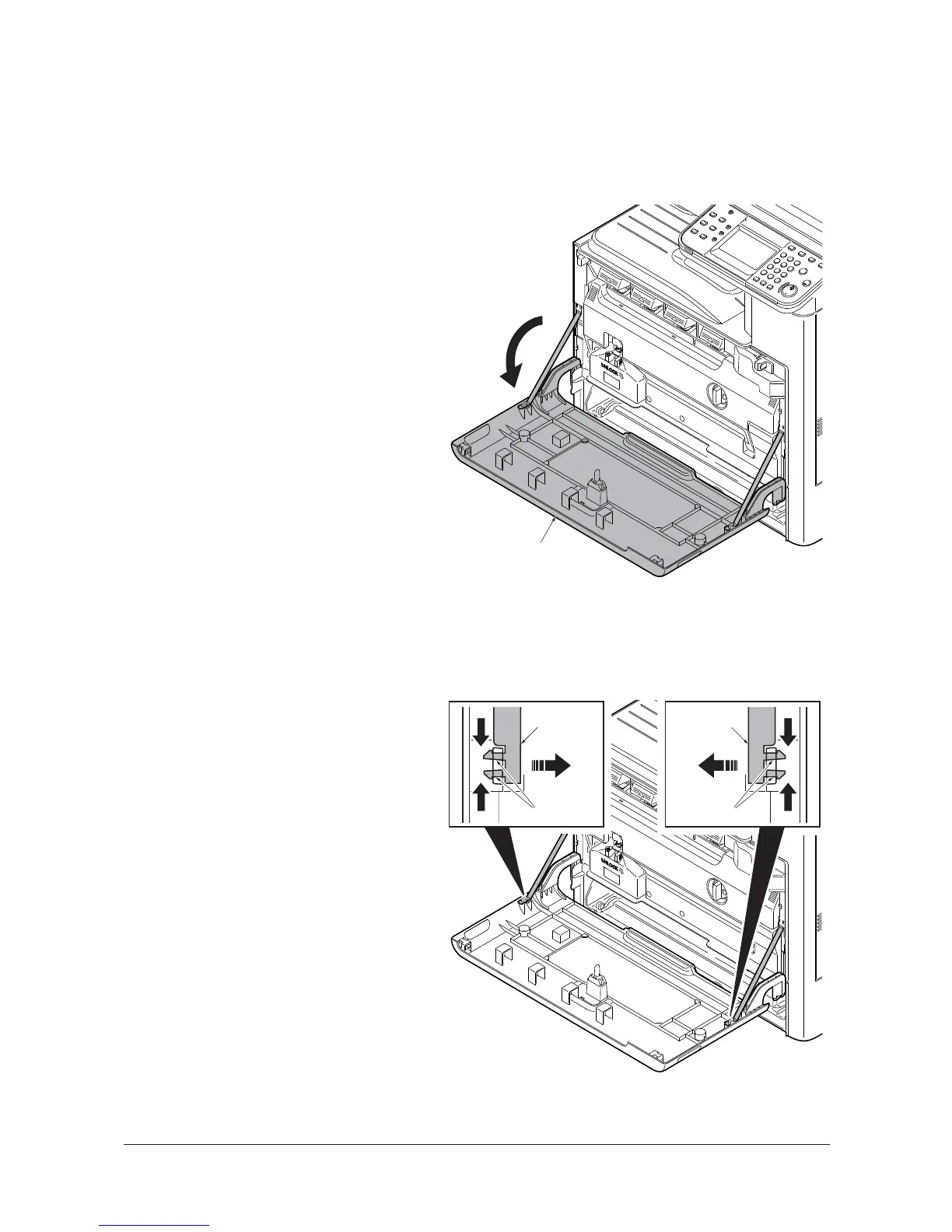

2. Open the front cover.
Figure 1-5-3
3. Unhitch the straps by squeezing the
hooks inward as shown.
Figure 1-5-4
Front cover
Hooks
Strap
Hooks
Strap
