(3) Detaching and refitting the LED unit
Procedure
1. Remove the DP or original cover.
(See page 1-5-25)
2. Remove the sanner right cover and
platen.(See page 1-5-21)
3. Remove the ISU front cover.

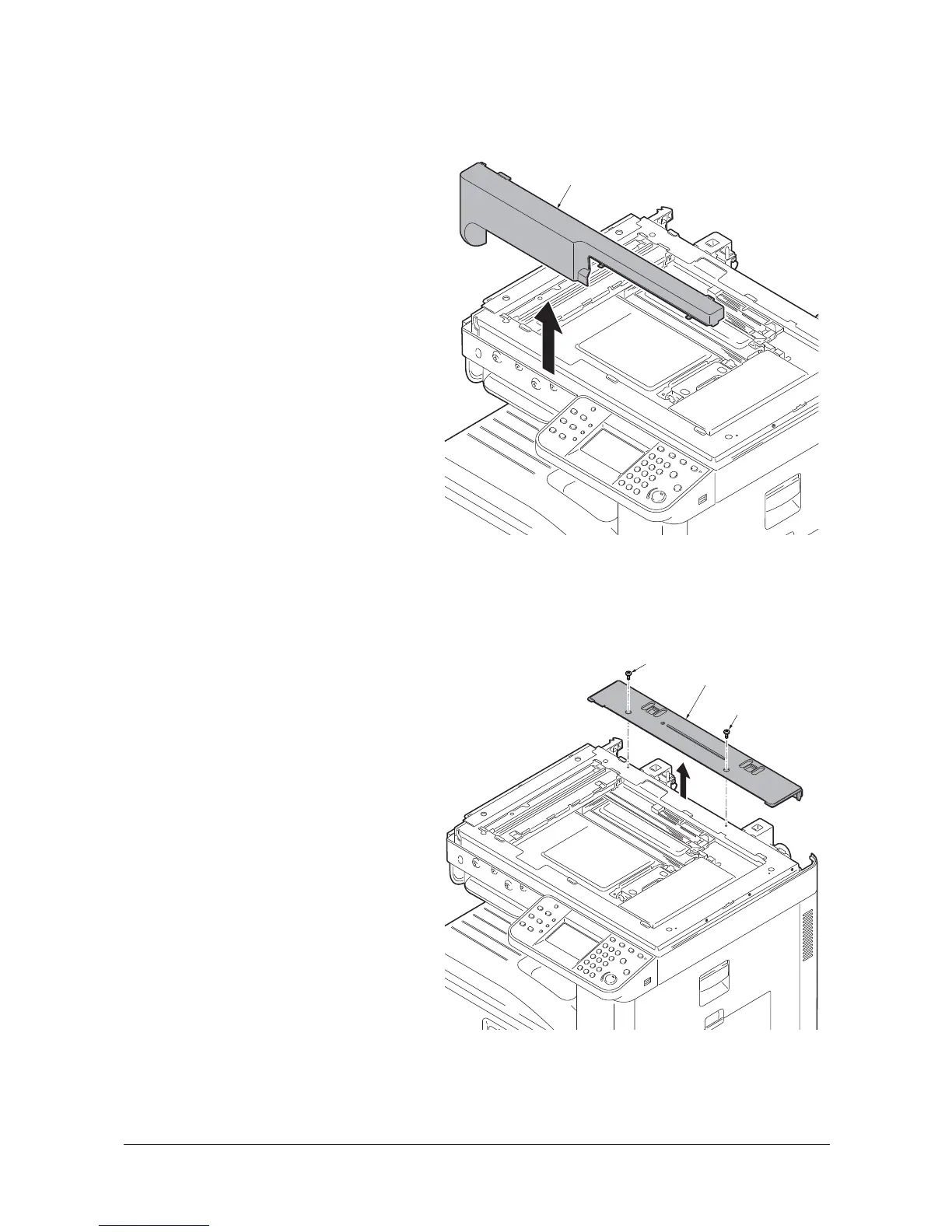

Figure 1-5-41
4. Remove two screws and then remove
the ISU rear cover.
Figure 1-5-42
ISU front cover
Screw
Screw
ISU rear cover
Y113010-4 Sevice Manual
