1-5-8 Drive section
(1) Detaching and refitting the conveying motor
Procedure
1. Remove the rear cover.
(See page 1-5-5)
2. Remove the connector from the
conveying motor PWB.
3. Remove three screws and then remove
the conveying motor.
4. Check or replace the conveying motor
and refit all the removed parts.

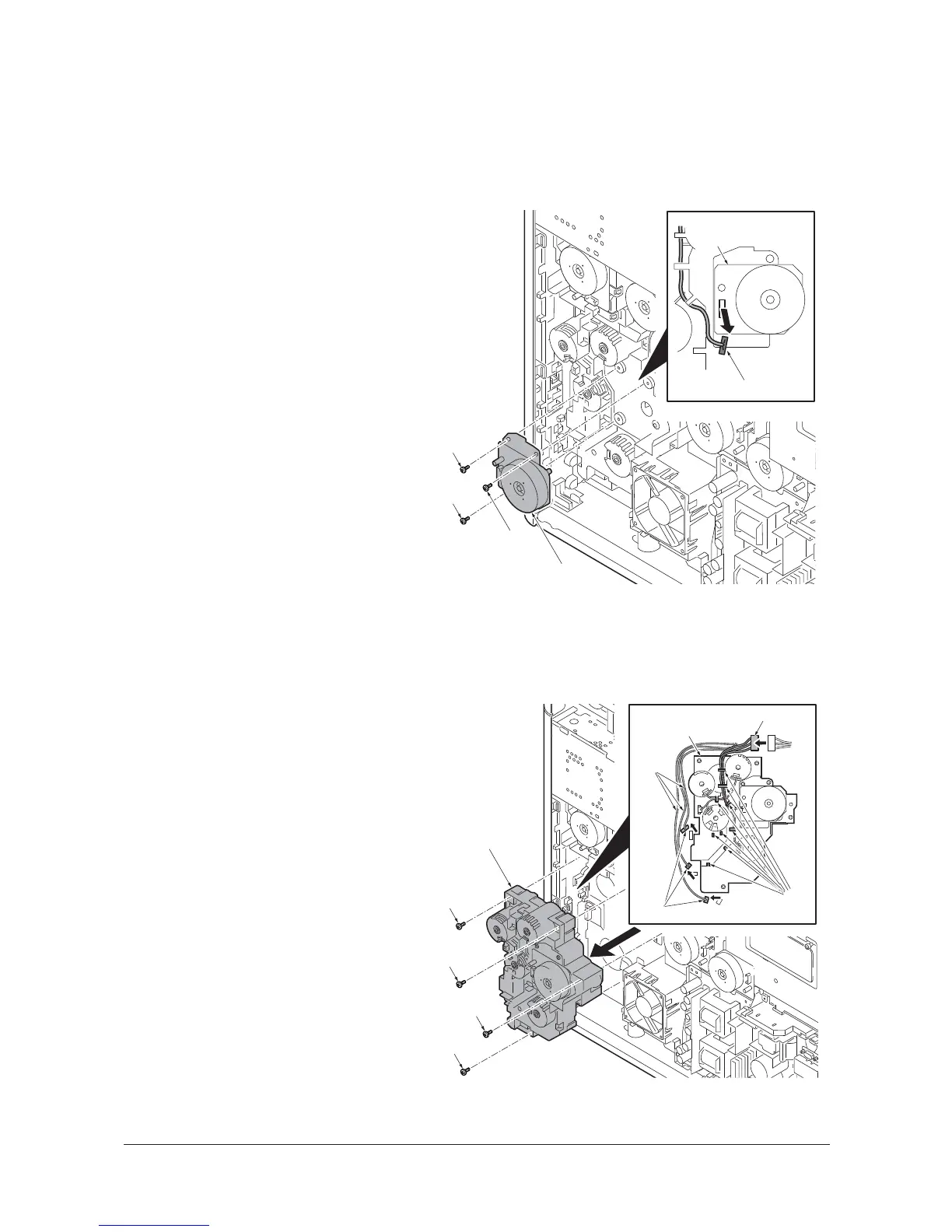

Figure 1-5-33
(2) Detaching and refitting the drive unit
Procedure
1. Remove the rear cover.
(See page 1-5-5)
2. Remove three connectors and then
release the waires from the hooks.
3. Remove four screws and then remove
the drive unit.
4. Check or replace the drive unit and refit
all the removed parts.
Figure 1-5-34
Screw
Screw
Conveying motor
Connector
Conveying
motor PWB
Screw
Screw
Screw
Screw
Drive unit
Screw
Wires
Connectors A
Hooks
Drive unit
Connector B
