1-6-2 Remarks on PWB replacement
NOTE: When replacing the PWB, remove the EEPROM from the PWB and then reattach it to the new PWB.
(1) Engine PWB

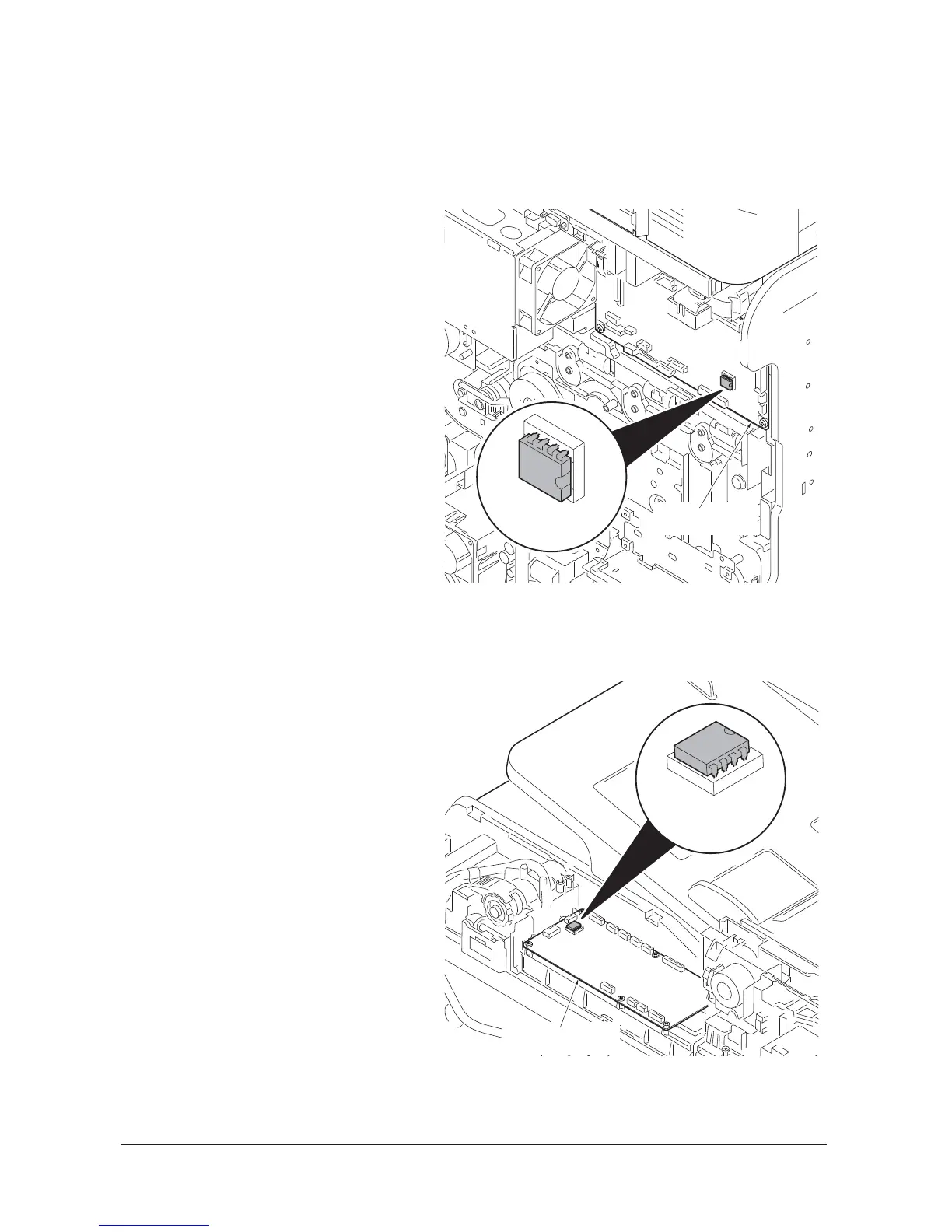

Figure 1-6-2
(2) DP main PWB
Figure 1-6-3
EEPROM (U15)
Engine PWB
EEPROM (YS1)
DP main PWB
Service Manual Y113010-4
