2KZ/2K0
1-5-38
4. Remove the wire cover 2.
5. Rotate the wire cover 1.
6. Remove the connector.
7. Rotate the fulcrum axis and slide it for-
ward.
8. Pull the right cover 1 backward and
then remove it.

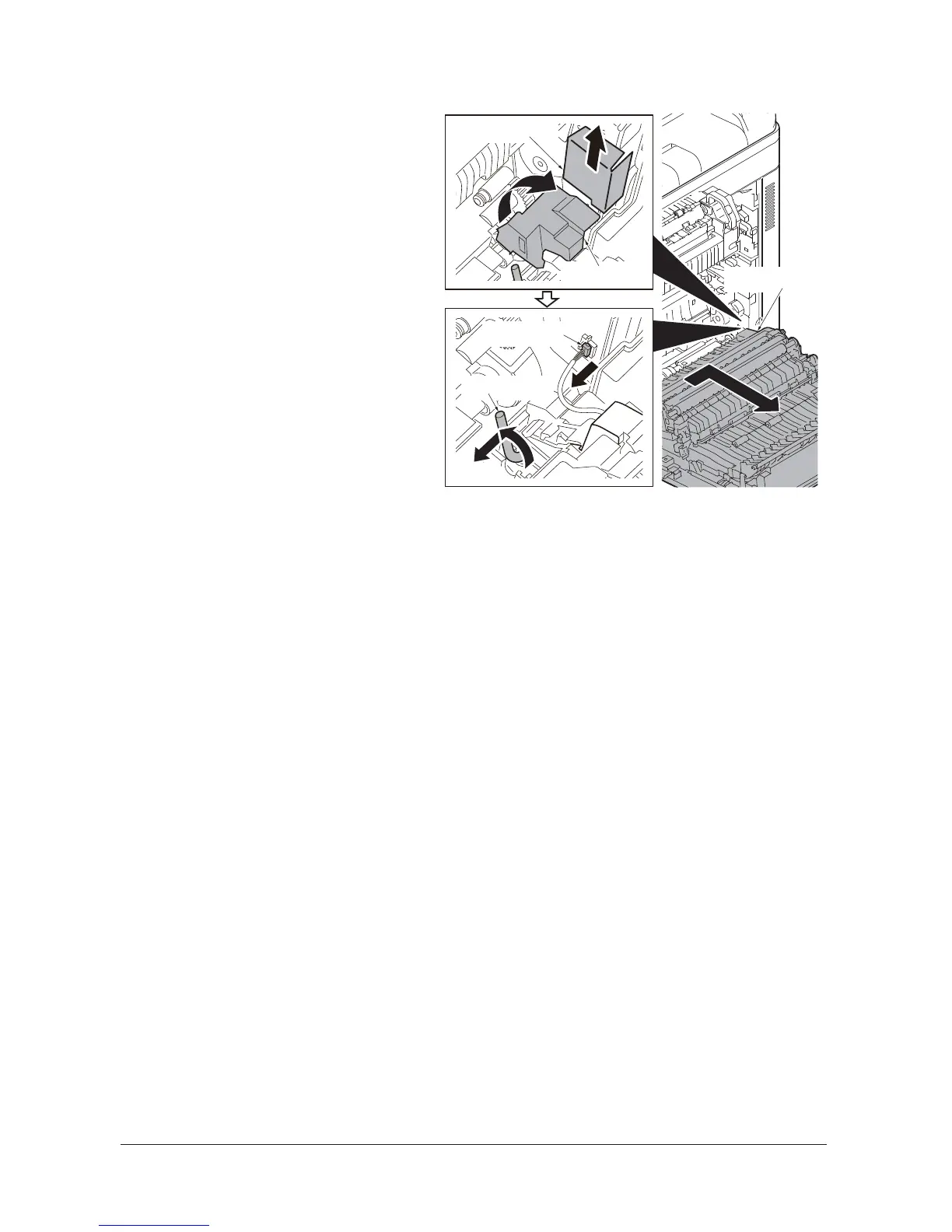

Figure 1-5-68
Flucrum axis
Connector
Right cover 1
Wire cover 1
Wire cover 2
Service Manual Y113010-4
